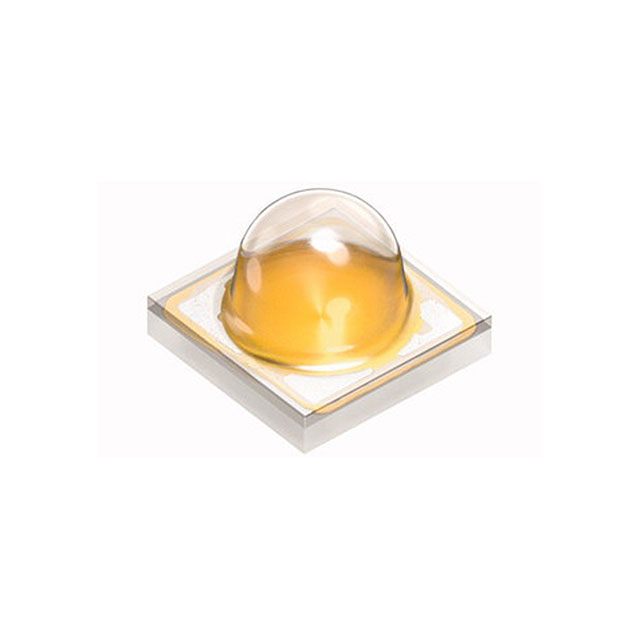

GW CS8PM1.EM-LPLR-A838-1-350-R18

Obsolete

ams-OSRAM USA INC.

LED OSLON WARM WHT 2700K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW CS8PM1.EM-LPLR-A838-1-350-R18

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	1.3 A
Current - Test	350 mA
Flux @ 85°C, Current - Test	126 lm
Flux @ 85°C, Current - Test [Max]	140 lm
Flux @ 85°C, Current - Test [Min]	112 lm
Height - Seated (Max) [Max] [z]	0.091 "
Height - Seated (Max) [Max] [z]	2.3 mm
Lumens/Watt @ Current - Test	126 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Viewing Angle	80 °
Voltage - Forward (Vf) (Typ)	2.85 V

GWCS8PM1.E Series

Part	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Color	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX54-1	1.3 A	136 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Neutral White	80	150 lm	121 lm	136 lm	80 °	2.85 V	350 mA
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-XX57-1-350-R18	1.3 A	126 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Warm White	80	140 lm	112 lm	126 lm	80 °	2.85 V	350 mA
ams-OSRAM USA INC. GW CS8PM1.EM-LRLT-A333-1-350-R18	1 A	147 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Cool White	80	164 lm	130 lm	147 lm	80 °	2.85 V	350 mA	5000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-XX58-1-350-R18	1.3 A	126 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Warm White	80	140 lm	112 lm	126 lm	80 °	2.85 V	350 mA	2700 K
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX55-1-350-R18	1.3 A	136 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Neutral White	80	150 lm	121 lm	136 lm	80 °	2.85 V	350 mA	4000 K
ams-OSRAM USA INC. GW CS8PM1.EM-KULQ-XX59-1-350-R18	1.3 A	117 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	2-SMD No Lead		Warm White	80				80 °	2.85 V	350 mA	2500 K
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX53-1-350-R18	1.3 A	136 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Cool White	80	150 lm	121 lm	136 lm	80 °	2.85 V	350 mA	5000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-A838-1-350-R18	1.3 A	126 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Warm White	80	140 lm	112 lm	126 lm	80 °	2.85 V	350 mA	2700 K	0.091 "	2.3 mm
ams-OSRAM USA INC. GW CS8PM1.EM-LRLT-XX53-1-350-R18	1 A	147 lm/W	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	SMD	1212	3030 Metric	Cool White	80	164 lm	130 lm	147 lm	80 °	2.85 V	350 mA	5000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.65
		10	$ 1.04
		100	$ 0.73
	Digi-Reel®	1	$ 1.51
		10	$ 0.96
		100	$ 0.71
	Tape & Reel (TR)	600	$ 0.65
		1200	$ 0.54
		3000	$ 0.51
		6000	$ 0.50
		15000	$ 0.49

Description

General part information

GWCS8PM1.E Series

LED Lighting OSLON® SSL 80 White, Warm 2700K 2.85V 350mA 80° 1212 (3030 Metric)
