21_MCX-50-2-13/133_NH

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

21_MCX-50-2-13/133_NH

Technical Specifications

Parameters and characteristics for this part

Specification	21_MCX-50-2-13/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Impedance	Frequency - Max [Max]	Mating Cycles	Connector Type	Body Finish	Connector Style	Voltage Rating	Fastening Type	Dielectric Material	Mounting Type	Housing Color	Contact Termination	Number of Ports	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Center Contact Plating	Cable Group
Huber+Suhner, Inc. 21_MCX-50-2-13/111_NH	50 Ohms	6000 MHz	500	Female Socket Jack	Gold	MCX	170 V	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Crimp	1	Crimp	155 °C	-55 °C	Beryllium Copper	Brass	Gold	188 316 RG-174
Huber+Suhner, Inc. 21_MCX-50-2-13/133_NH	50 Ohms	6000 MHz	500	Female Socket Jack	White Bronze	MCX	170 V	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	Crimp	1	Crimp	155 °C	-55 °C	Beryllium Copper	Brass	Gold	188 316 RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

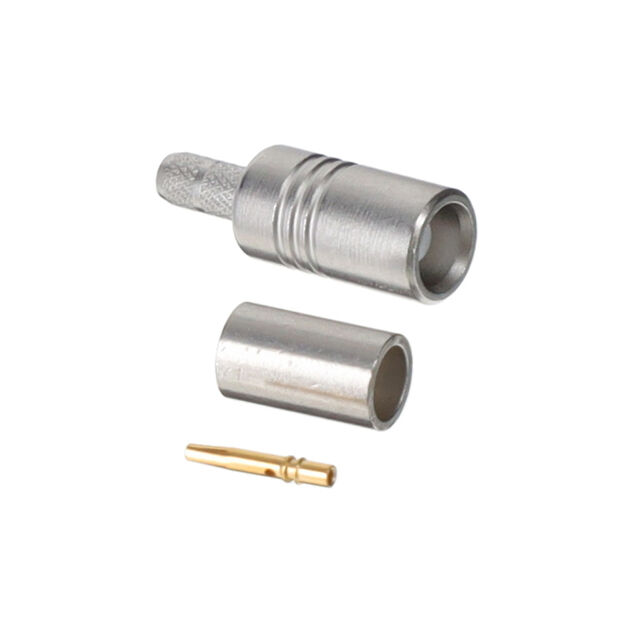

MCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
