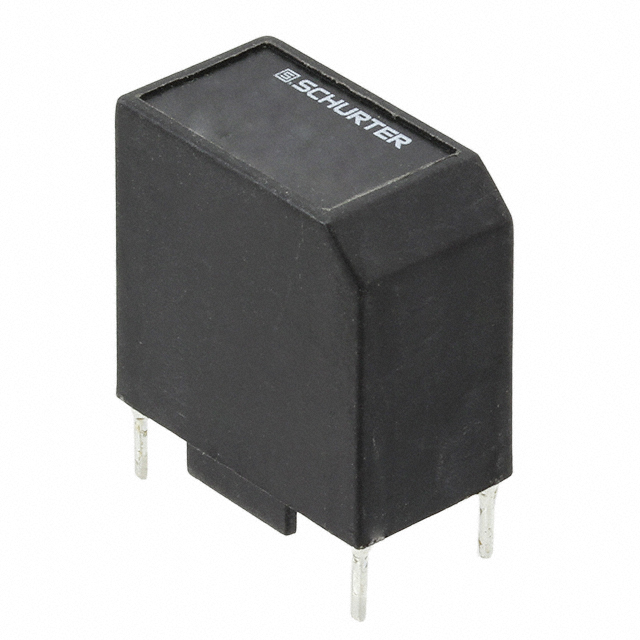

DFKH-22-0002

Active

SCHURTER Inc.

CMC 1A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 1A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFKH-22-0002

Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max) [Max]	500 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	23 mm
Size / Dimension [x]	0.906 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Voltage Rating - AC	440 V

Part	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max) [Max]	Package / Case	Number of Lines	Current Rating (Max) [Max]	Mounting Type	Operating Temperature [custom]
SCHURTER Inc. DFKH-31-0002	440 V	0.728 in	18.5 mm	1.24 in	31.5 mm	700 mOhm	Radial - 4 Leads	2	1 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-31-0008	440 V	0.728 in	18.5 mm	1.24 in	31.5 mm	24 mOhm	Radial - 4 Leads	2	6 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-31-0001	440 V	0.728 in	18.5 mm	1.24 in	31.5 mm	1.2 Ohm	Radial - 4 Leads	2	600 mA	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-22-0005	440 V	0.512 in	13 mm	0.906 in	23 mm	15 mOhm	Radial - 4 Leads	2	6.3 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-14-0002	440 V	0.413 in	10.5 mm	0.591 in	15 mm	250 mOhm	Radial - 4 Leads	2	1 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-22-0002	440 V	0.512 in	13 mm	0.906 in	23 mm	500 mOhm	Radial - 4 Leads	2	1 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-31-0005	440 V	0.728 in	18.5 mm	1.24 in	31.5 mm	150 mOhm	Radial - 4 Leads	2	2 A	Through Hole	-25 °C 100 °C
SCHURTER Inc. DFKH-22-0004	440 V	0.512 in	13 mm	0.906 in	23 mm	36 mOhm	Radial - 4 Leads	2	4 A	Through Hole	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Through Hole 1A DCR 500mOhm
