TN6728A

Obsolete

ON Semiconductor

TRANS PNP 60V 1.2A TO-226-3

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TRANS PNP 60V 1.2A TO-226-3

Technical Specifications

Parameters and characteristics for this part

Specification	TN6728A

Current - Collector (Ic) (Max) [Max]	1.2 A
Current - Collector Cutoff (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

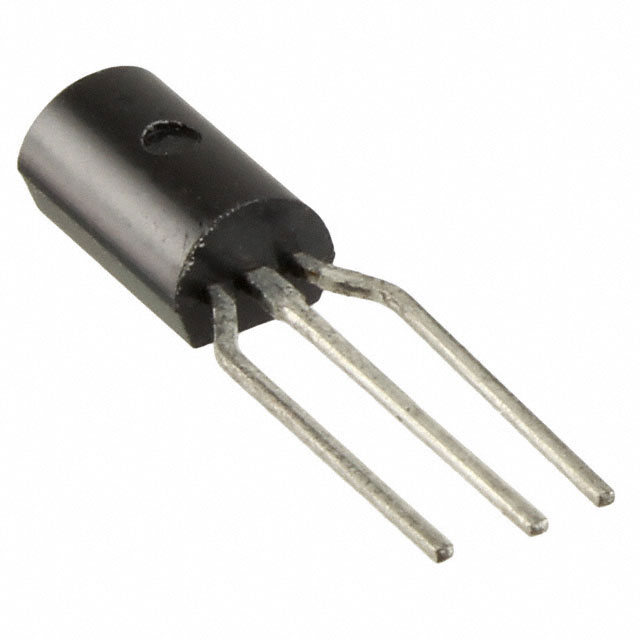

Package / Case	TO-226-3, TO-92-3
Power - Max [Max]	1 W
Supplier Device Package	TO-226-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Transistor Type	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Mounting Type	Current - Collector Cutoff (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package
ON Semiconductor TN6728A	PNP	-55 °C	150 °C	1 W	500 mV	1.2 A	Through Hole	100 nA	TO-226-3 TO-92-3	60 V	TO-226-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 60 V 1.2 A 1 W Through Hole TO-226-3
