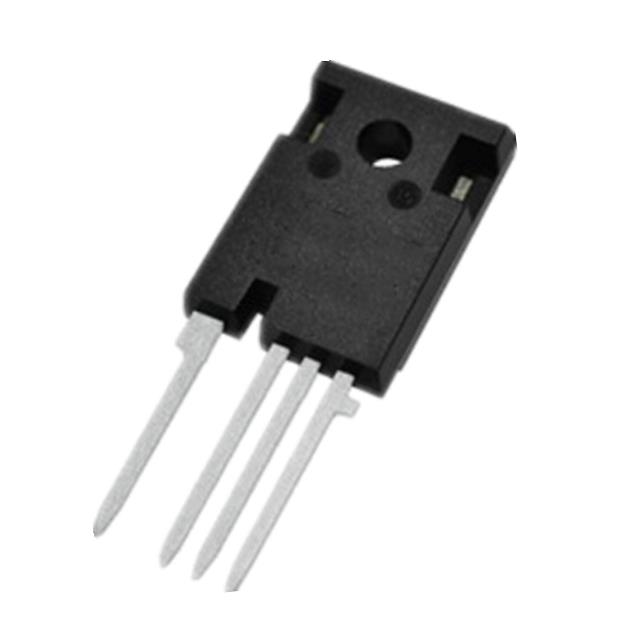

NC1M120C75HTNG
ActiveNovuSem
SIC MOSFET N 1200V 75MOHM 47A 4
Deep-Dive with AI
Search across all available documentation for this part.
NC1M120C75HTNG
ActiveNovuSem
SIC MOSFET N 1200V 75MOHM 47A 4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NC1M120C75HTNG |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 47 A |
| Drain to Source Voltage (Vdss) | 1200 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1450 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-247-4 |
| Power Dissipation (Max) | 288 W |
| Supplier Device Package | TO-247-4L |
| Vgs (Max) [Max] | 20 V |
| Vgs (Max) [Min] | -5 V |
| Vgs(th) (Max) @ Id | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 12.85 | |
Description
General part information
NC1M120C75HTNG
N-Channel 1200 V 47A (Tc) 288W (Ta) Through Hole TO-247-4L
Documents
Technical documentation and resources
No documents available
