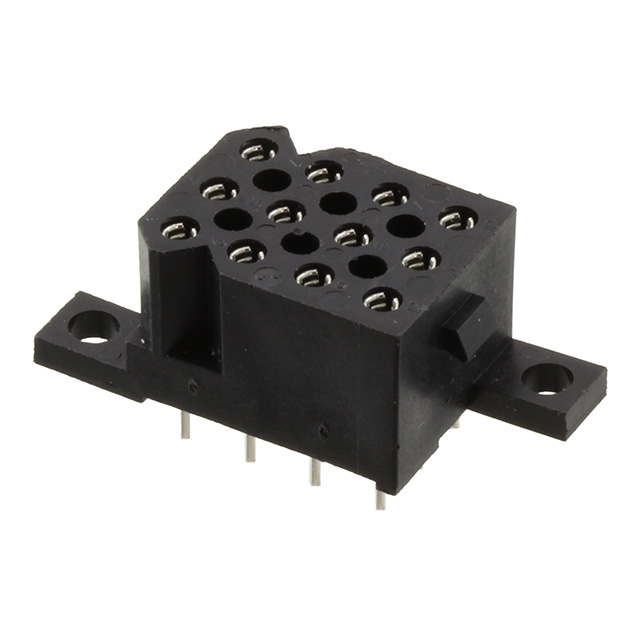

SMS12RE3TR29

Active

Souriau-Sunbank by Eaton

CONN RCPT 12POS 0.2 TIN PCB

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT 12POS 0.2 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS12RE3TR29

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Style	Board to Board, Cable
Termination	Solder

Part	Ingress Protection	Overall Contact Length	Overall Contact Length	Fastening Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Termination	Contact Shape	Shrouding	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Contact Material	Features	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Style
Souriau-Sunbank by Eaton SMS12RE-4TR29	IP40	0.972 in	24.7 mm	Locking Ramp	12	3 µm	118.1 µin	0.173 in	4.4 mm	Male Pin	-55 °C	125 °C	Polyester Glass Filled	Solder	Circular	Unshrouded	UL94 V-0	5.08 mm	0.2 "	Header	5.08 mm	0.2 in	All	Black	5 A	Copper Alloy	Mounting Flange	Tin	Through Hole	118.1 µin	3 µm	0.28 in	7.11 mm	Board to Cable/Wire
Souriau-Sunbank by Eaton SMS12RE3TR29	IP40			Locking Ramp	12	3 µm	118.1 µin	0.173 in	4.4 mm	Female Socket	-55 °C	105 ░C		Solder	Circular		UL94 V-0	5.08 mm	0.2 "	Receptacle	5.08 mm	0.2 in	All	Black	5 A	Copper Alloy	Mounting Flange	Tin	Through Hole	118.1 µin	3 µm			Board to Board Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin
