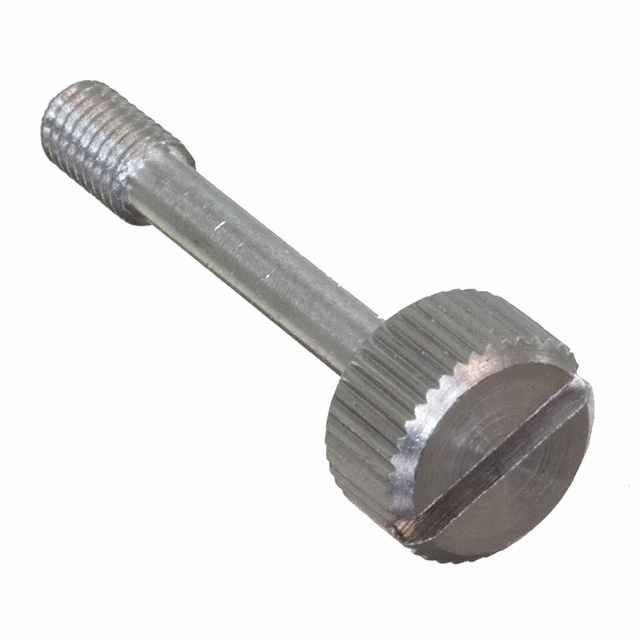

0171-SS
ActiveRAF Electronic Hardware
7/16HD X 1 1/4 X 10-32 THD
Deep-Dive with AI
Search across all available documentation for this part.
0171-SS
ActiveRAF Electronic Hardware
7/16HD X 1 1/4 X 10-32 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0171-SS |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 11.11 mm |
| Head Diameter [diameter] | 0.438 " |
| Head Height [z] | 0.25 in |
| Head Height [z] | 6.35 mm |
| Head Height [z] | 0.25 in |
| Length - Below Head [x] | 31.75 mm |
| Length - Below Head [x] | 1.25 in |
| Length - Overall [x] | 1.5 in |
| Length - Overall [x] | 38.1 mm |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Size | #10-32 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.11 | |
| 5 | $ 7.81 | |||
Description
General part information
0171-S Series
#10-32 Knob Panel Screw Slotted Drive Stainless Steel
Documents
Technical documentation and resources
No documents available
