SN200M

Active

Comet America, LP

PT1000TR160/M, TEMP PROBE 2 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR160/M, TEMP PROBE 2 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN200M

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5.7 mm
Element Type	Pt1000
Length - Lead Wire [x]	6.562 ft
Length - Lead Wire [x]	2 m
Length - Protective Tube [x]	20 mm
Temperature Range [Max]	80 °C
Temperature Range [Min]	-40 °F
Terminal Type	Exposed Lead Wires

Part	Conductor Type	Terminal Type	Temperature Range [Max]	Temperature Range [Min]	Length - Lead Wire [x]	Length - Lead Wire [x]	Diameter - Protective Tube [diameter]	Length - Protective Tube [x]	Element Type
Comet America, LP SN200E	Non-Grounded	Exposed Lead Wires	80 °C	-40 °F	6.562 ft	2 m	5.7 mm	20 mm	Pt1000
Comet America, LP SN200M	Non-Grounded	Exposed Lead Wires	80 °C	-40 °F	6.562 ft	2 m	5.7 mm	20 mm	Pt1000
Comet America, LP SN200C	Non-Grounded	Exposed Lead Wires	80 °C	-40 °F	6.562 ft	2 m	5.7 mm	20 mm	Pt1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

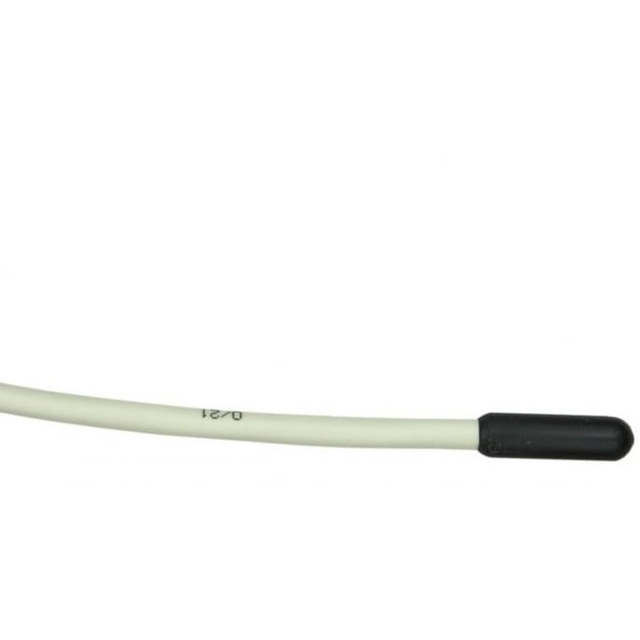

Pt1000 Temperature Sensor -40°C ~ 80°C Non-Grounded Exposed Lead Wires
