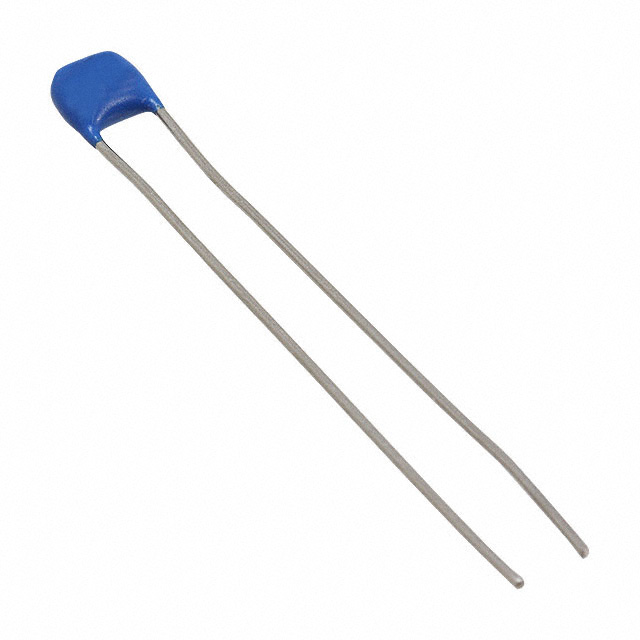

05HV10N471KN

Active

KEMET

CAP CER 470PF 500V NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 470PF 500V NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	05HV10N471KN

Applications	Downhole
Capacitance	470 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max]	5.59 mm
Height - Seated (Max) [Max]	0.22 in
Lead Spacing	0.17 in
Lead Spacing	4.32 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	6.35 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.81 mm
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	500 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Lead Style	Temperature Coefficient	Voltage - Rated	Capacitance	Tolerance	Features	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
KEMET 05HV10N471KN	0.15 "	6.35 mm	0.25 "	3.81 mm	5.59 mm	0.22 in	Downhole	Straight	C0G NP0	500 V	470 pF	10 %	High Temperature High Voltage	0.17 in	4.32 mm	Radial	Through Hole	-55 °C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

470 pF ±10% 500V Ceramic Capacitor C0G, NP0 Radial
