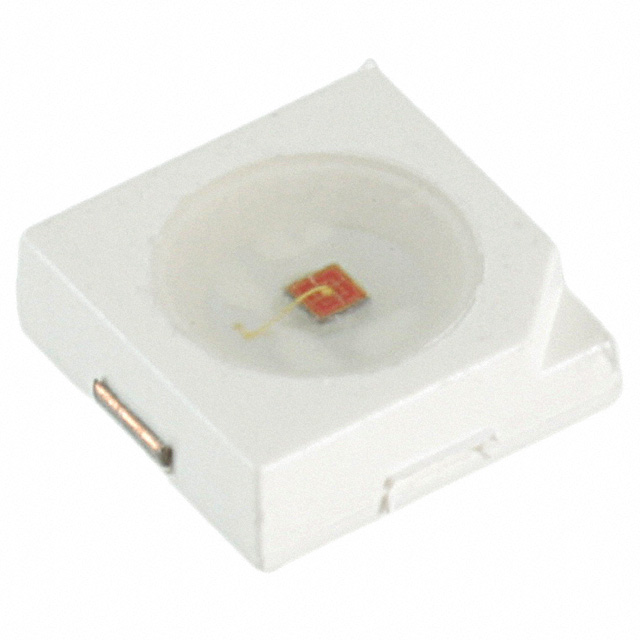

VLMY51Z1AA-GS08

Obsolete

Vishay General Semiconductor - Diodes Division

LED YELLOW 590NM 2PLCC

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED YELLOW 590NM 2PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	VLMY51Z1AA-GS08

Color	Yellow
Current - Max [Max]	200 mA
Current - Test	140 mA
Height - Seated (Max) [Max]	1.4 mm
Height - Seated (Max) [Max]	0.055 in
Lumens/Watt @ Current - Test	65 lm/W
Luminous Flux @ Current/Temperature	20 lm
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 in
Size / Dimension [y]	3.5 mm
Size / Dimension [y]	0.138 in
Supplier Device Package	2-PLCC
Thermal Resistance of Package [custom]	50 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength	590 nm

Part	Package / Case	Package / Case	Supplier Device Package	Lumens/Watt @ Current - Test	Thermal Resistance of Package [custom]	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Wavelength	Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature
Vishay General Semiconductor - Diodes Division VLMY51Z1AA-GS08	3535 Metric	1414	2-PLCC	65 lm/W	50 °C/W	120 °	1.4 mm	0.055 in	200 mA	3.5 mm	3.5 mm	0.138 in	0.138 in	140 mA	590 nm	Yellow	Surface Mount	2.2 V	20 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Yellow 590nm (585nm ~ 594nm) 1414 (3535 Metric)
