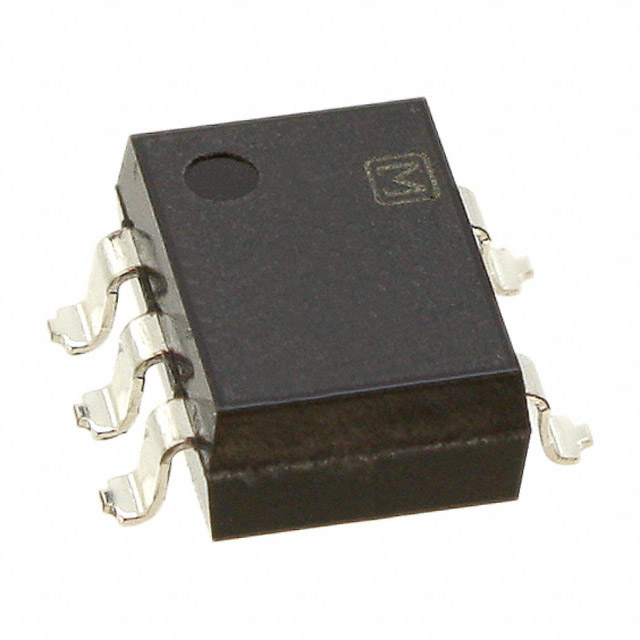

APV1122AZ
ActivePanasonic Electric Works
OPTOCOUPLER PHOTOVO 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
APV1122AZ
ActivePanasonic Electric Works
OPTOCOUPLER PHOTOVO 6SMD
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | APV1122AZ |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 14 µA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Photovoltaic |
| Package / Case | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | 6-DIP |
| Turn On / Turn Off Time (Typ) | 400 µs, 100 µs |
| Voltage - Forward (Vf) (Typ) | 1.15 V |
| Voltage - Output (Max) [Max] | 8.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.07 | |
| 10 | $ 2.76 | |||
| 100 | $ 2.10 | |||
| 500 | $ 1.83 | |||
| Digi-Reel® | 1 | $ 4.07 | ||
| 10 | $ 2.76 | |||
| 100 | $ 2.10 | |||
| 500 | $ 1.83 | |||
| Tape & Reel (TR) | 1000 | $ 1.75 | ||
| 2000 | $ 1.69 | |||
| 3000 | $ 1.65 | |||
| 5000 | $ 1.62 | |||
Description
General part information
APV1122 Series
Optoisolator Photovoltaic Output 5000Vrms 1 Channel 6-DIP
