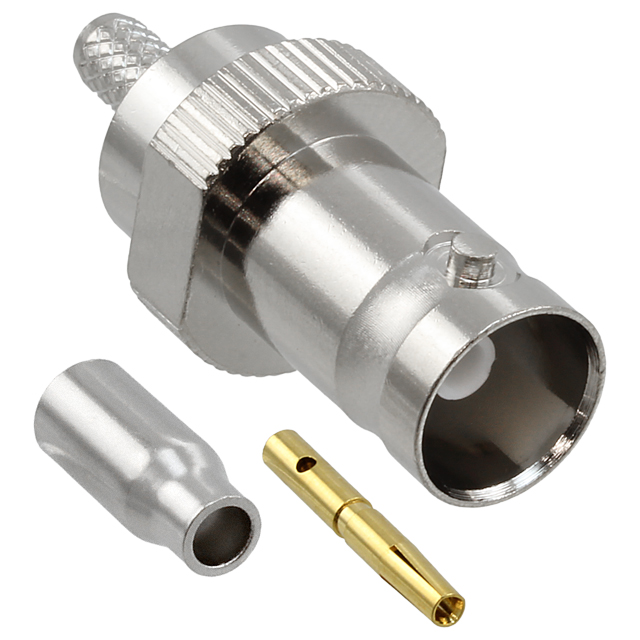

VB30-2061

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	VB30-2061

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Impedance	Connector Type	Connector Style	Mating Cycles	Voltage Rating	Cable Group	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Includes	Body Finish	Fastening Type	Dielectric Material	Shield Termination	Insertion Loss	Center Contact Material	Contact Termination	Body Material	Frequency - Max [Max]
Cinch Connectivity Solutions Trompeter VB30-2061	1	75 Ohms	Female Socket Jack	BNC	500	500 V	RG-179	Free Hanging (In-Line)	-65 ░C	165 °C	Gold	Silver	1 Connector 1 Contact 1 Ferrule	Nickel	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Crimp	0.2 dB	Brass	Crimp	Brass	1 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
