Technical Specifications
Parameters and characteristics for this part
| Specification | 11_UHF-0-3-17/033_-E |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | UHF |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polysulfone (PSU) |
| Frequency - Max [Max] | 200 MHz |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
11_UHF-0 Series
| Part | Number of Ports | Center Contact Plating | Frequency - Max [Max] | Cable Group | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Body Material | Mounting Type | Connector Type | Housing Color | Center Contact Material | Impedance | Dielectric Material | Shield Termination | Body Finish | Contact Termination | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. | 1 | Silver | 200 MHz | RG-213 | 165 °C | -55 °C | UHF | Brass | Free Hanging (In-Line) | Male Pin Plug | Silver | Brass | 75 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Solder | Silver | Solder | 500 |
Huber+Suhner, Inc. | 1 | Silver | 200 MHz | RG-214 | 165 °C | -55 °C | UHF | Brass | Free Hanging (In-Line) | Male Pin Plug | Silver | Brass | Polysulfone (PSU) | Crimp | White Bronze | Crimp | ||
Huber+Suhner, Inc. | 1 | Silver | 200 MHz | RG-213 | 165 °C | -55 °C | UHF | Brass | Free Hanging (In-Line) | Male Pin Plug | Silver | Brass | Polysulfone (PSU) | Crimp | White Bronze | Crimp | ||
Huber+Suhner, Inc. | 1 | Silver | 200 MHz | RG-58 | 165 °C | -55 °C | UHF | Brass | Free Hanging (In-Line) | Male Pin Plug | Silver | Brass | Polysulfone (PSU) | Crimp | White Bronze | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.41 | |
Description
General part information
11_UHF-0 Series

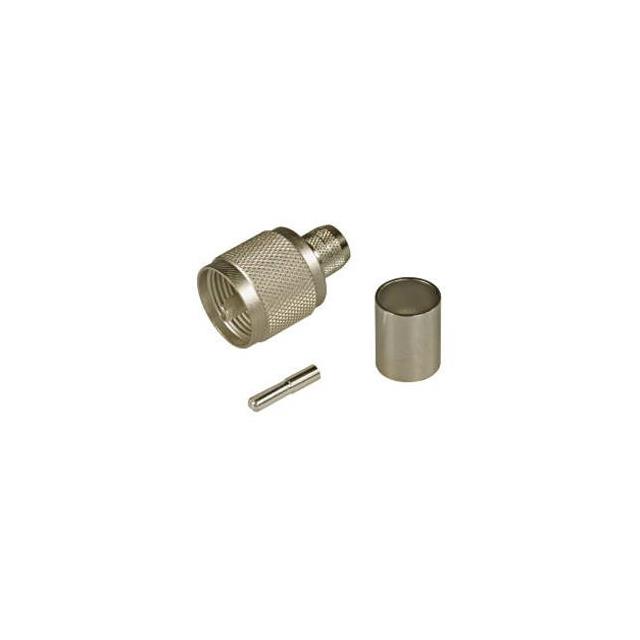

UHF Connector Plug, Male Pin Free Hanging (In-Line) Crimp
