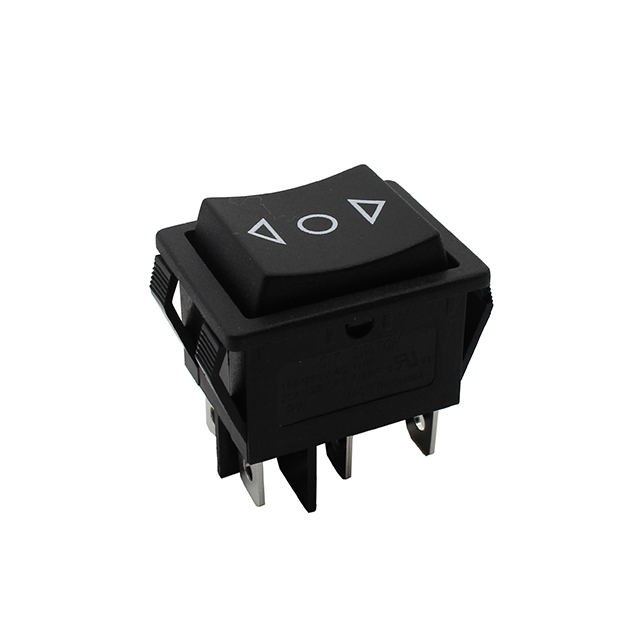

RW2622HWC
ActiveCIT Relay and Switch
SWITCH ROCKER DPDT 20A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RW2622HWC
ActiveCIT Relay and Switch
SWITCH ROCKER DPDT 20A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RW2622HWC |
|---|---|
| Actuator Marking | Triangular Arrows with O |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 30.2 mm |
| Panel Cutout Dimensions [y] | 22.25 mm |
| Switch Function | On-Off-On |
| Voltage Rating - AC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.64 | |
| 65 | $ 2.14 | |||
| 130 | $ 2.03 | |||
| 1040 | $ 1.72 | |||
Description
General part information
RW2622H Series
Rocker Switch DPDT 20A (AC) 120 V Panel Mount, Snap-In
