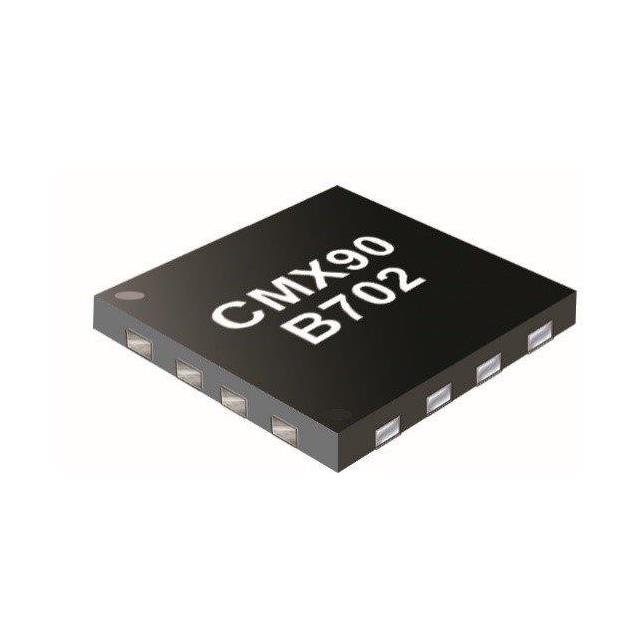

CMX90B702QF-R710
ActiveCML Micro
LOW CURRENT, LOW NOISE, 23GHZ-29
Deep-Dive with AI
Search across all available documentation for this part.
CMX90B702QF-R710
ActiveCML Micro
LOW CURRENT, LOW NOISE, 23GHZ-29
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMX90B702QF-R710 |
|---|---|
| Current - Supply | 10 mA |
| Frequency [Max] | 29.5 GHz |
| Frequency [Min] | 23 GHz |
| Gain | 17.5 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 4 dB |
| P1dB | 5 dBm |
| Package / Case | 16-VFQFN Exposed Pad |
| RF Type | FWA, 5G, Ka-Band, ISM, K-Band |
| Supplier Device Package | 16-VQFN (3x3) |
| Test Frequency | 26 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 7.65 | |
Description
General part information
CMX90B Series
RF Amplifier IC 5G, FWA, ISM, Ka-Band K-Band 23GHz ~ 29.5GHz 16-VQFN (3x3)
Documents
Technical documentation and resources
No documents available
