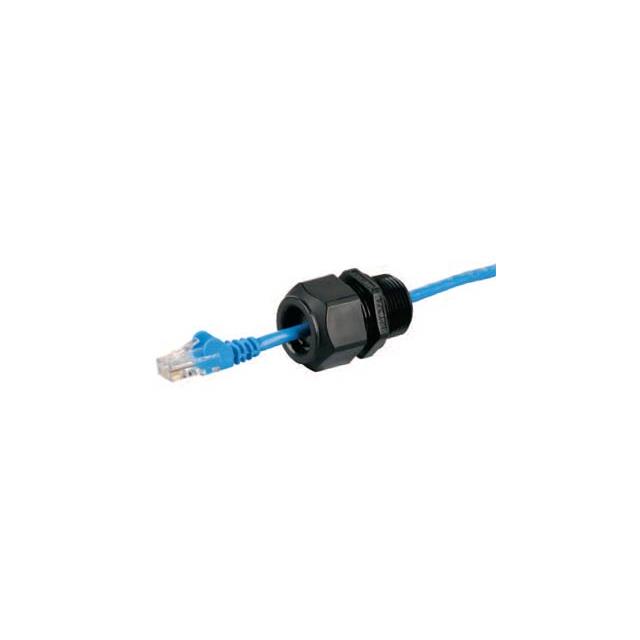

M3235GBH
ActiveHeyco Products Corporation
CABLE GRIP 5.33-8.48MM 3/4" NPT
Deep-Dive with AI
Search across all available documentation for this part.
M3235GBH
ActiveHeyco Products Corporation
CABLE GRIP 5.33-8.48MM 3/4" NPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3235GBH |
|---|---|
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 8.48 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.334 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.21 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 5.33 mm |
| Panel Hole Size | 26.4 mm |
| Panel Hole Size | 1.04 in |
| Thread Length | 15.75 mm |
| Thread Length | 0.62 in |
| Thread Size | 3/4 NPT |
| Type | Cable Grip - Split |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.22 | |
| 5 | $ 2.73 | |||
| 10 | $ 2.56 | |||
| 25 | $ 2.35 | |||
| 50 | $ 2.22 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.97 | |||
| 500 | $ 1.88 | |||
| 1000 | $ 1.80 | |||
Description
General part information
M3235G Series
Cable Grip - Split Polyamide (PA66), Nylon 6/6 3/4" NPT Black
