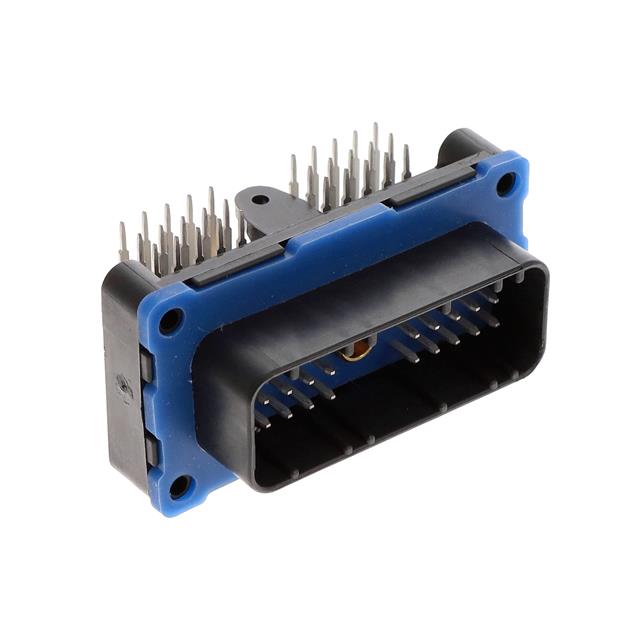

581 01 30 013

Active

Cinch Connectivity Solutions Trompeter

CONN HEADER R/A 30POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	581 01 30 013

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Length - Post	4.22 mm
Contact Length - Post	0.166 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

581 01 30 Series

Part	Contact Type	Mounting Type	Contact Termination	Number of Rows	Number of Positions	Note	Color	Features	Connector Type	Insulation Color	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Material	Applications	Ingress Protection	Termination	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Material	Number of Positions Loaded	Contact Finish - Mating
Cinch Connectivity Solutions Trompeter 581 01 30 030	Female Socket	Free Hanging (In-Line)	Crimp	3	30	Contacts Not Included	Natural	IP67/IP69K	Receptacle
Cinch Connectivity Solutions Trompeter 5810130001	Male Pin	Through Hole Right Angle		3	30			Ferrite Filter	Header	Gray	Shrouded - 4 Wall	Square	4.22 mm	0.166 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Automotive	IP67 IP69K	Solder	10 A	Tin-Lead	125 °C	-40 °C	Board to Cable/Wire	Brass	All	Tin-Lead
Cinch Connectivity Solutions Trompeter 581 01 30 002	Male Pin	Panel Mount Right Angle Through Hole		3	30			Ferrite Filter	Header	Black	Shrouded - 4 Wall	Square	4.22 mm	0.166 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Automotive	IP67 IP69K	Solder	10 A	Tin-Lead	125 °C	-40 °C	Board to Cable/Wire	Brass	All	Tin-Lead
Cinch Connectivity Solutions Trompeter 581 01 30 011	Male Pin	Through Hole Right Angle		3	30				Header	Gray	Shrouded - 4 Wall	Square	4.22 mm	0.166 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Automotive	IP67 IP69K	Solder	10 A	Tin-Lead	125 °C	-40 °C	Board to Cable/Wire	Brass	All	Tin-Lead
Cinch Connectivity Solutions Trompeter 581 01 30 013	Male Pin	Through Hole Right Angle		3	30				Header	Black	Shrouded - 4 Wall	Square	4.22 mm	0.166 in	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Automotive	IP67 IP69K	Solder	10 A	Tin-Lead	125 °C	-40 °C	Board to Cable/Wire	Brass	All	Tin-Lead
