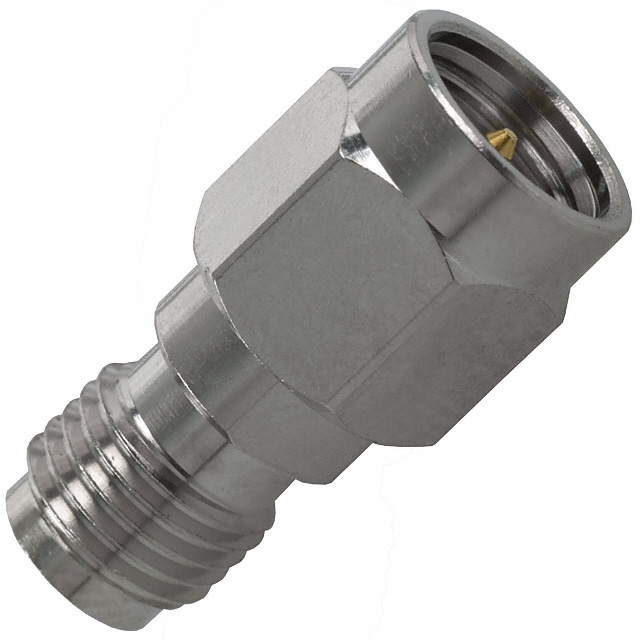

ADP-SMAM-RPSF

Active

TE Connectivity Linx

CONN ADAPT SMA PLUG-RP SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

ADP-SMAM-RPSF

Active

TE Connectivity Linx

CONN ADAPT SMA PLUG-RP SMA JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADP-SMAM-RPSF

Adapter Series	SMA to RP-SMA
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

ADP-SMAM Series

Part	Convert From (Adapter End)	Fastening Type	Mating Cycles	Conversion Type	Impedance	Style	Center Contact Plating	Adapter Series	Mounting Type	Center Gender	Convert To (Adapter End)	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Body Finish	Frequency - Max [Max]	Center Contact Material
TE Connectivity Linx ADP-SMAM-MCXF	SMA Plug Male Pin	Snap-On Threaded	500	Between Series	50 Ohms	Straight	Gold	SMA to MCX	Free Hanging (In-Line)	Male to Female	Female Socket MCX Jack	Plug to Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	6000 MHz	Beryllium Copper
TE Connectivity Linx ADP-SMAM-RPSF-G	SMA Plug Male Pin		500	Same Series	50 Ohms	Straight	Gold	SMA to RP-SMA	Free Hanging (In-Line)	Male to Female	Male Pin RP-SMA Jack	Plug to Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	18 GHz	Brass
TE Connectivity Linx ADP-SMAM-UFLF	SMA Plug Male Pin	Snap-On Threaded	500	Between Series	50 Ohms	Straight	Gold	SMA to U.FL (UMCC)	Free Hanging (In-Line)	Male to Male	Male Pin U.FL Jack	Plug to Jack	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	6000 MHz	Brass
TE Connectivity Linx ADP-SMAM-MCXM	SMA Plug Male Pin	Snap-On Threaded	500	Between Series	50 Ohms	Straight	Gold	SMA to MCX	Free Hanging (In-Line)	Male to Male	Male Pin MCX Plug	Plug to Plug	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	6000 MHz	Brass
TE Connectivity Linx ADP-SMAM-SMBM-G	SMA Plug Male Pin	Snap-On Threaded	500	Between Series	50 Ohms	Straight	Gold	SMA to SMB	Free Hanging (In-Line)		Female Socket SMB Plug	Plug to Plug	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	4 GHz	Beryllium Copper
TE Connectivity Linx ADP-SMAM-MMXM	SMA Plug Male Pin	Snap-On Threaded	500	Between Series	50 Ohms	Straight	Gold	SMA to MMCX	Free Hanging (In-Line)	Male to Male	Male Pin MMCX Plug	Plug to Plug	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	6000 MHz	Brass
TE Connectivity Linx ADP-SMAM-SMAM-G	SMA Plug Male Pin		500	Same Series	50 Ohms	Straight	Gold	SMA to SMA	Free Hanging (In-Line)	Male to Male	Male Pin SMA Plug	Plug to Plug	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	18 GHz	Brass
TE Connectivity Linx ADP-SMAM-RPSF	SMA Plug Male Pin		500	Between Series	50 Ohms	Straight	Gold	SMA to RP-SMA	Free Hanging (In-Line)	Male to Male	Male Pin RP-SMA Jack	Plug to Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	12.4 GHz	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.03
		250	$ 5.73
		1000	$ 5.38
		2000	$ 4.97

Description

General part information

ADP-SMAM Series

Adapter Coaxial Connector SMA Plug, Male Pin To RP-SMA Jack, Male Pin 50 Ohms

Documents

Technical documentation and resources

No documents available
