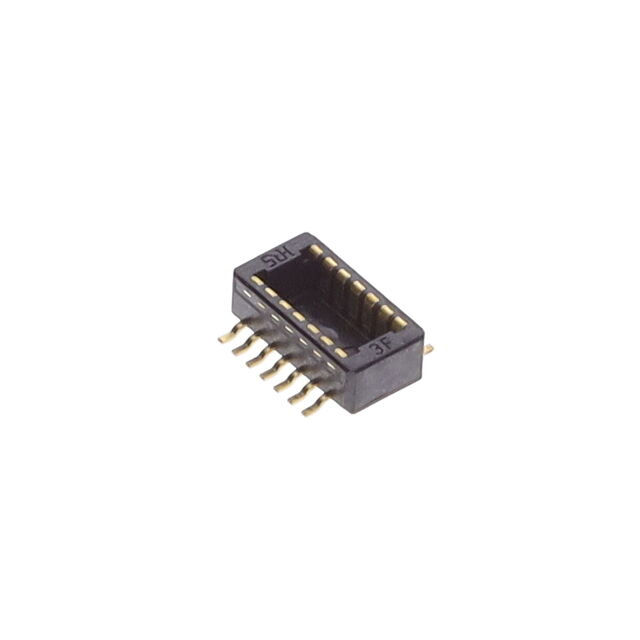

DF40TC-10DP-0.4V(51)

Active

Hirose Electric USA, Inc.

FPC TO BOARD CONNECTOR, 0.4MM PI

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

FPC TO BOARD CONNECTOR, 0.4MM PI

Technical Specifications

Parameters and characteristics for this part

Specification	DF40TC-10DP-0.4V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Pick and Place, Solder Retention
Height Above Board	1.14 mm
Height Above Board	0.045 in
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Number of Positions	Features	Connector Type	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF40TC(3.5)-30DS-0.4V(51)	2	Surface Mount	0.016 in	0.4 mm	3.4 mm	0.134 in	1.97 Áin	0.05 Ám	Gold	3.5 mm	30	Pick and Place Solder Retention	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. DF40TC(3.0)-40DS-0.4V(51)	2	Surface Mount	0.016 in	0.4 mm	2.9 mm	0.114 "	1.97 Áin	0.05 Ám	Gold	3 mm	40	Pick and Place Solder Retention	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. DF40TC-40DP-0.4V(58)	2	Surface Mount	0.016 in	0.4 mm			1.97 Áin	0.05 Ám	Gold		40	Pick and Place Solder Retention	Header Outer Shroud Contacts	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40TC-10DP-0.4V(51)	2	Surface Mount	0.016 in	0.4 mm			1.97 Áin	0.05 Ám	Gold		10	Pick and Place Solder Retention	Header Outer Shroud Contacts	1.14 mm	0.045 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
