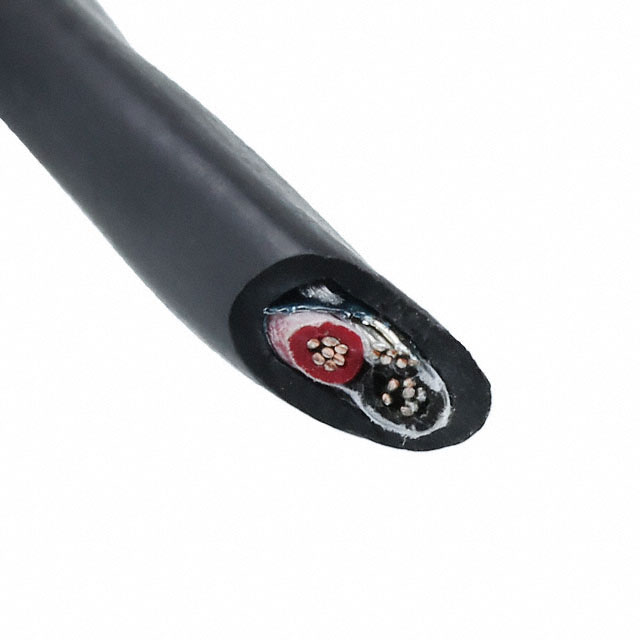

25362/1 BK005

Active

ALPHA WIRE

CABLE 2COND 16AWG BLACK SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	25362/1 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	16 AWG

Part	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Number of Conductors	Length [x]	Length [x]	Conductor Material	Conductor Insulation	Jacket Color	Shield Type	Shield Coverage	Shield Material	Ratings	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 25362/1 BK005	300 V	Polyurethane (PU)	19	0.0117 in	Biological Compatibility Drain Wire Rip Cord	2	30.5 m	100 ft	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	Foil	100 %	Aluminum	ISO 10993 UL Style 20668	Multi-Conductor	-30 ░C	90 °C	16 AWG	6.45 mm	0.254 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.42

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG Foil 100.0' (30.5m)
