PRPC003SBBN-M71RC

Active

Sullins Connector Solutions

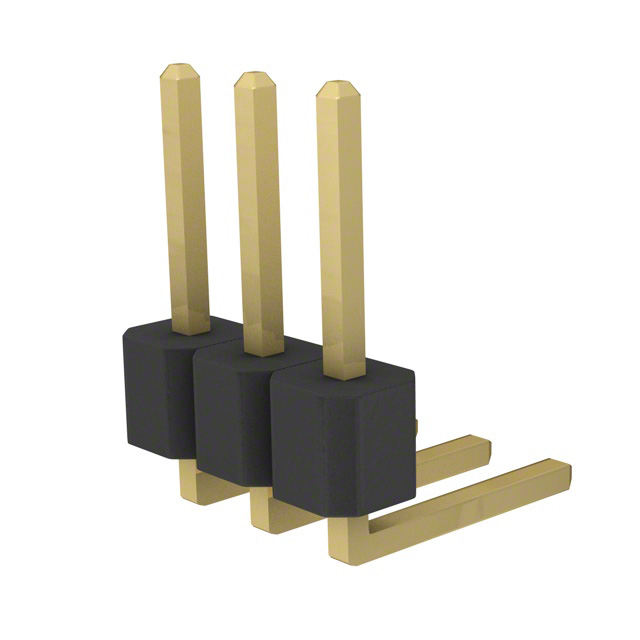

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC003SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC003SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC003 Series

Part	Style	Contact Finish Thickness - Mating	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions	Connector Type	Number of Positions Loaded	Fastening Type	Termination	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PRPC003DABN-RC	Board to Board Cable	Flash	Male Pin	0.23 in	5.84 mm	0.23 in	5.84 mm	Unshrouded	0.558 in	14.18 mm	0.1 in	2.54 mm	Brass	Gold	Flash	2	6	Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square	2.54 mm	0.1 in	-40 °C	105 ░C	Through Hole	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC003SACN-RC	Board to Board Cable	Flash	Male Pin	0.23 in	5.84 mm			Unshrouded	0.648 in	16.47 mm	0.1 in	2.54 mm	Brass	Gold	Flash	1		Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square			-40 °C	105 ░C	Through Hole	Polybutylene Terephthalate (PBT)	0.32 in	8.13 mm
Sullins Connector Solutions PRPC003SBCN-M71RC	Board to Board Cable	Flash	Male Pin	0.23 in	5.84 mm			Unshrouded			0.1 in	2.54 mm	Brass	Gold	Flash	1		Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square			-40 °C	105 ░C	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	0.32 in	8.13 mm
Sullins Connector Solutions PRPC003SGAN-M71RC	Board to Board Cable	Flash	Male Pin	0.318 "				Unshrouded			0.1 in	2.54 mm	Brass	Gold	Flash	1		Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square			-40 °C	105 ░C	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	0.12 in	3.05 mm	8.08 mm
Sullins Connector Solutions PRPC003SBBN-M71RC	Board to Board Cable	Flash	Male Pin	0.23 in	5.84 mm	0.22 in	5.58 mm	Unshrouded			0.1 in	2.54 mm	Brass	Gold	Flash	1		Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square			-40 °C	105 ░C	Through Hole Right Angle	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC003SFAN-RC	Board to Board Cable	Flash	Male Pin	0.318 "				Unshrouded		0.537 "	0.1 in	2.54 mm	Brass	Gold	Flash	1		Breakaway Header	All	Push-Pull	Solder	Gold	UL94 V-0	3 A	Black	0.098 in	2.5 mm	Square			-40 °C	105 ░C	Through Hole	Polybutylene Terephthalate (PBT)	0.12 in	3.05 mm	8.08 mm	13.63 mm
