6280-3SG-315

Active

Conxall/Switchcraft

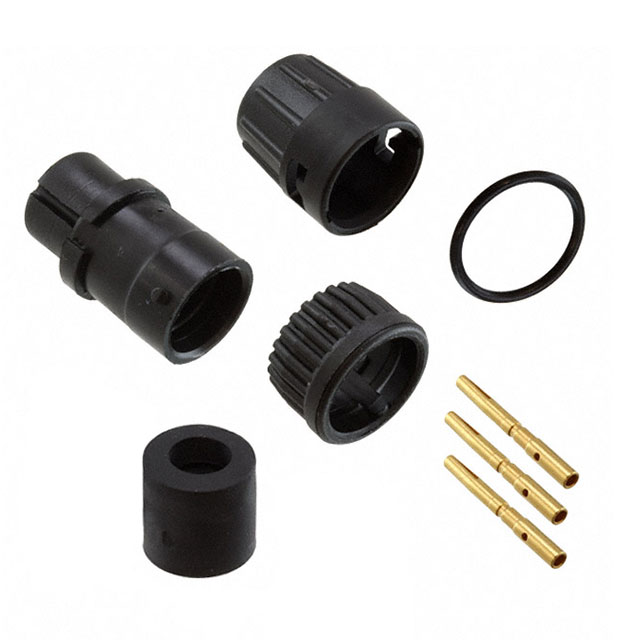

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	6280-3SG-315

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Orientation	Applications	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shielding	Connector Type	Contact Finish - Mating	Primary Material	Voltage Rating	Mounting Type	Features	Backshell Material, Plating	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Ingress Protection	Color	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6280-3SG-516	Varies by Wire Gauge	Keyed	Automotive Communication Systems Instrumentation	Brass	-40 °C	115 °C	Bayonet Lock	Unshielded	Female Sockets Plug	Gold	Plastic	600 V	Free Hanging (In-Line)	Backshell	Nylon Polyamide (PA)	Crimp	0.16 in	0.18 in	4.06 mm	4.57 mm	Weathertight	Black
Conxall/Switchcraft 6280-3SG-311	Varies by Wire Gauge	Keyed	Automotive Communication Systems Instrumentation	Brass	-40 °C	115 °C	Bayonet Lock	Unshielded	Female Sockets Plug	Gold	Plastic	600 V	Free Hanging (In-Line)	Backshell	Nylon Polyamide (PA)	Crimp					Weathertight	Black	2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 6280-3SG-315	Varies by Wire Gauge	Keyed	Automotive Communication Systems Instrumentation	Brass	-40 °C	115 °C	Bayonet Lock	Unshielded	Female Sockets Plug	Gold	Plastic	600 V	Free Hanging (In-Line)	Backshell	Nylon Polyamide (PA)	Crimp					Weathertight	Black				0.15 in 0.17 in	3.81 mm 4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
