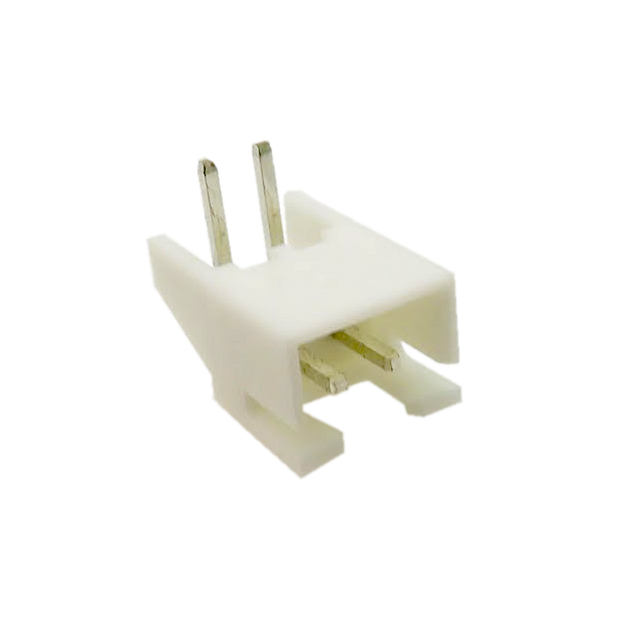

25SH-B-02-TR

Active

Adam Tech

CONN HEADER R/A 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

25SH-B-02-TR

Active

Adam Tech

CONN HEADER R/A 2POS 2.5MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25SH-B-02-TR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

25SH-B Series

Part	Contact Finish - Post	Shrouding	Fastening Type	Mounting Type	Contact Material	Style	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Current Rating (Amps)	Contact Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows	Insulation Height [z]	Insulation Height [z]	Number of Positions
Adam Tech 25SH-B-05-TR	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole Right Angle	Brass	Board to Cable/Wire	5.8 mm	0.228 in	UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1
Adam Tech 25SH-B-07-TS	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole	Brass	Board to Cable/Wire			UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1	7 mm	0.276 in	7
Adam Tech 25SH-B-06-TS	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole	Brass	Board to Cable/Wire			UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1	7 mm	0.276 in	6
Adam Tech 25SH-B-10-TR	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole Right Angle	Brass	Board to Cable/Wire	5.8 mm	0.228 in	UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1			10
Adam Tech 25SH-B-02-TS	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole	Brass	Board to Cable/Wire			UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1	7 mm	0.276 in	2
Adam Tech 25SH-B-08-TS	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole	Brass	Board to Cable/Wire			UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1	7 mm	0.276 in	8
Adam Tech 25SH-B-05-TS	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole	Brass	Board to Cable/Wire			UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1	7 mm	0.276 in
Adam Tech 25SH-B-02-TR	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole Right Angle	Brass	Board to Cable/Wire	5.8 mm	0.228 in	UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1			2
Adam Tech 25SH-B-07-TR	Tin	Shrouded - 4 Wall	Friction Lock	Through Hole Right Angle	Brass	Board to Cable/Wire	5.8 mm	0.228 in	UL94 V-0	Square	3 A	Male Pin	250 VAC	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Kinked Pin Solder	Header	All	2.5 mm	0.098 in	White	1			7
