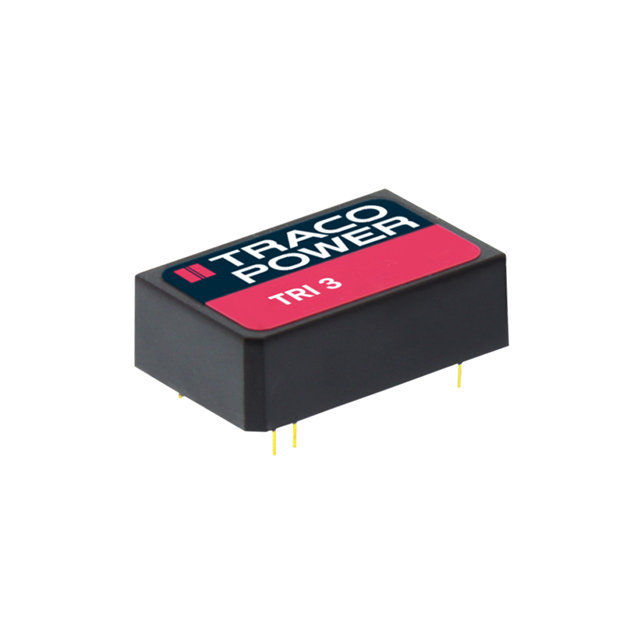

TRI 3-2423

Active

Traco Power

DC DC CONVERTER +/-15V 3.5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRI 3-2423

Active

Traco Power

DC DC CONVERTER +/-15V 3.5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRI 3-2423

Applications	ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max)	115 mA
Current - Output (Max)	115 mA
Efficiency	86 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	96 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 6 Leads
Power (Watts)	3.5 W
Size / Dimension [x]	1.25 "
Size / Dimension [x]	31.8 mm
Size / Dimension [y]	20.3 mm
Size / Dimension [y]	0.8 in
Size / Dimension [z]	12 mm
Size / Dimension [z]	0.47 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	9 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TRI 3 Series

Part	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Type	Package / Case	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Traco Power TRI 3-0513	3.5 W	4.5 V	15 V	84 %	Isolated Module	24-DIP Module 5 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)	235 mA	9 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	1
Traco Power TRI 3-0512	3.5 W	4.5 V	12 V	83 %	Isolated Module	24-DIP Module 5 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)	290 mA	9 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	1
Traco Power TRI 3-4823	3.5 W	36 V	15 V	84 %	Isolated Module	24-DIP Module 6 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)		75 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	2	115 mA	115 mA	-15 V
Traco Power TRI 3-2413	3.5 W	18 V	15 V	87 %	Isolated Module	24-DIP Module 5 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)	235 mA	36 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	1
Traco Power TRI 3-2423	3.5 W	18 V	15 V	86 %	Isolated Module	24-DIP Module 6 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)		36 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	2	115 mA	115 mA	-15 V
Traco Power TRI 3-2422	3.5 W	18 V	12 V	87 %	Isolated Module	24-DIP Module 6 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)		36 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	2	145 mA		-12 V	145 mA
Traco Power TRI 3-4815	3.5 W	36 V	24 V	83 %	Isolated Module	24-DIP Module 5 Leads	9 kV	96 °C	-40 °C	ITE (Commercial)	146 mA	75 V	CB cURus	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	Through Hole	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 44.90
		10	$ 39.52
		25	$ 38.22
		50	$ 37.26
		100	$ 36.32
		250	$ 35.12
		500	$ 31.50

Description

General part information

TRI 3 Series

Isolated Module DC DC Converter 2 Output 15V -15V 115mA, 115mA 18V - 36V Input
