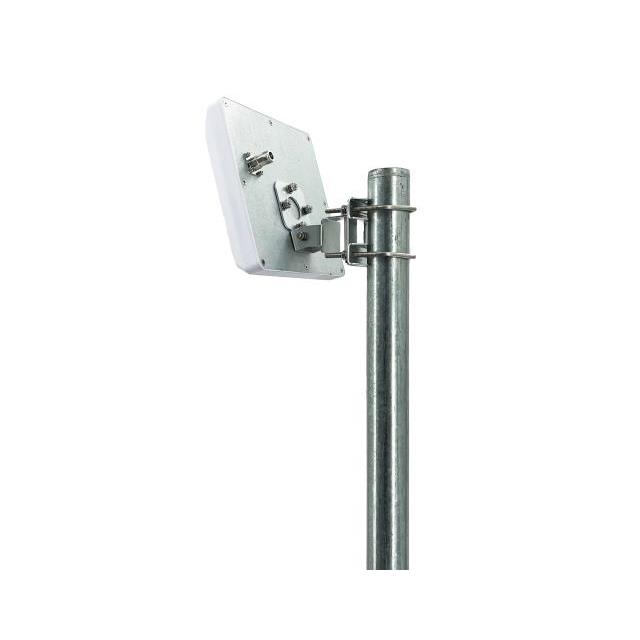

OSCAR67/X/NTYPEF/33
ActiveSiretta Ltd
HIGH GAIN 9 DBI DIRECTIONAL ISM
Deep-Dive with AI
Search across all available documentation for this part.
OSCAR67/X/NTYPEF/33
ActiveSiretta Ltd
HIGH GAIN 9 DBI DIRECTIONAL ISM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OSCAR67/X/NTYPEF/33 |
|---|---|
| Antenna Type | Panel |
| Applications | Sigfox, ISM, LoRa, Zigbee™ |
| Frequency (Center/Band) | 830 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 700 MHz |
| Gain | 9 dBi |
| Height (Max) [z] | 1.772 in |
| Height (Max) [z] | 45 mm |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | 802.15.4 |
| Termination | N Type Female |
| VSWR | 1.35 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.47 | |
| 10 | $ 106.66 | |||
| 25 | $ 103.76 | |||
| 100 | $ 96.50 | |||
Description
General part information
OSCAR67 Series
RF ANTENNA ISM, LoRa, Sigfox, Zigbee™ Panel N Type Female Base Mount
