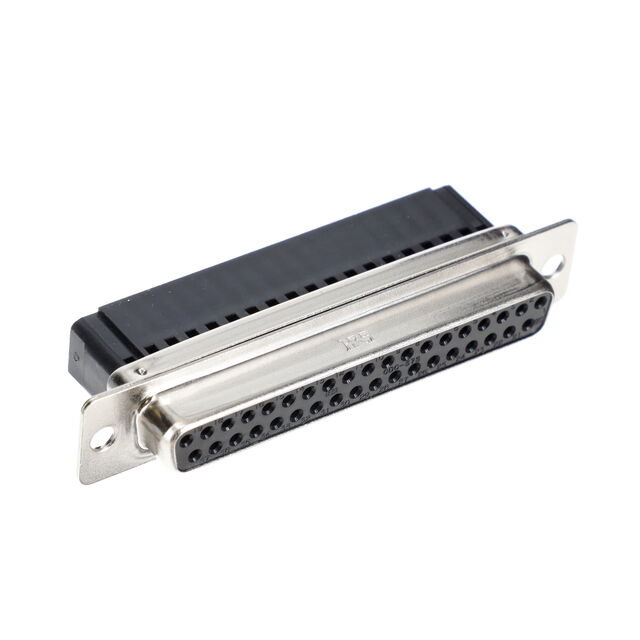

CDC-37S(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB HD HOUSING RCPT 37POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB HD HOUSING RCPT 37POS

Technical Specifications

Parameters and characteristics for this part

Specification	CDC-37S(05)

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)

Part	Flange Feature	Features	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Contact Type	Number of Positions	Dielectric Material	Color	Shell Size, Connector Layout	Connector Type	Note	Shell Material, Finish	Primary Material	Number of Rows	Mounting Type
Hirose Electric USA, Inc. CDC-37S(05)	Housing/Shell (Unthreaded)	Grounding Indents	85 °C	-55 °C	D-Sub High Density	Signal	37	Polybutylene Terephthalate (PBT)	Black	4 (DC C)	Receptacle for Female Contacts	Contacts Not Included	Nickel Plated Steel	Metal	2	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Sub, High Density Connector 37 Position
