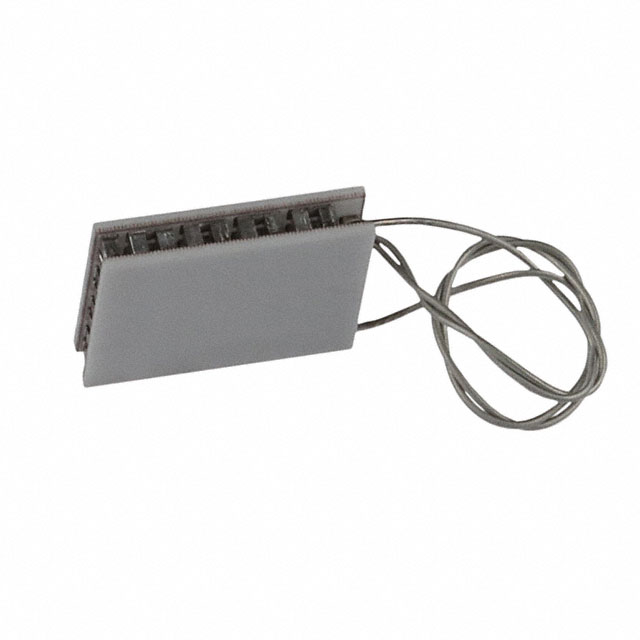

CM29-1.9-06AC
ActiveMarlow Industries, Inc.
TEM 10.2X6.02X1.68MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM29-1.9-06AC
ActiveMarlow Industries, Inc.
TEM 10.2X6.02X1.68MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM29-1.9-06AC |
|---|---|
| Current - Max [Max] | 1.9 A |
| Delta Tmax @ Th | 71 °C, 27 °C |
| Features | Lead Wires |
| Height [z] | 1.62 mm |
| Number of Stages | 1 |
| Qmax @ Th | 4.3 W |
| Resistance | 1.54 Ohms |
| Size / Dimension [x] | 10.2 mm |
| Size / Dimension [y] | 6.02 mm |
| Voltage - Max [Max] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.94 | |
| 5 | $ 14.97 | |||
| 10 | $ 14.62 | |||
| 25 | $ 14.08 | |||
| 50 | $ 13.73 | |||
| 100 | $ 13.38 | |||
Description
General part information
CM29-1 Series
Peltier Module 4.3W @ 27°C 1.9 A 85°C
Documents
Technical documentation and resources
