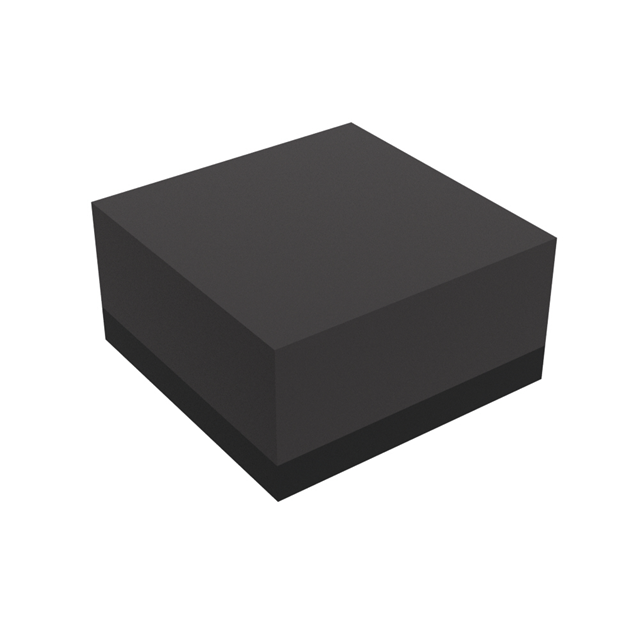

RP106Z181D-TR-F
ActiveNisshinbo Micro Devices Inc
IC REG LIN 1.8V 400MA WLCSP-4-P5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP106Z181D-TR-F
ActiveNisshinbo Micro Devices Inc
IC REG LIN 1.8V 400MA WLCSP-4-P5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP106Z181D-TR-F |
|---|---|
| Control Features | Enable |
| Current - Output | 400 mA |
| Current - Quiescent (Iq) | 75 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Protection Features | Over Current |
| PSRR | 60 dB |
| Supplier Device Package | WLCSP-4-P5 |
| Voltage - Input (Max) [Max] | 3.6 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
| Voltage Dropout (Max) [Max] | 0.31 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.44 | |
| 10000 | $ 0.43 | |||
Description
General part information
RP106 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA WLCSP-4-P5
