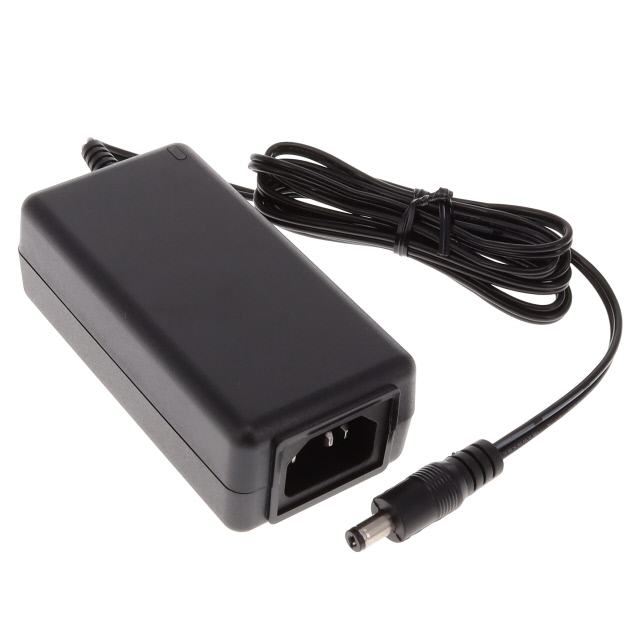

PPL36U-180

Active

Phihong USA

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 36W, HYBRID, PACKAGE

Search across all available documentation for this part.

Active

Phihong USA

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 36W, HYBRID, PACKAGE

Technical Specifications

Parameters and characteristics for this part

Specification	PPL36U-180

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Output Connector [z]	Output Connector [diameter]	Output Connector	Approval Agency	Cord Length	Cord Length	Form	Input Type	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	No Load Power Consumption [Max]	Region Utilized	Applications	Power (Watts)	Input Connector	Efficiency	Voltage - Output
Phihong USA PPL36U-240	90 VAC	264 VAC	1.5 A	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	cULus IEC	1.5 m	59 in	Desktop (Class I)	Cord	Positive Center	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	62368-1	75 mW	International	ITE (Commercial)	36 W	IEC 320-C14	CoC Tier 2 Level VI	24 V
Phihong USA PPL36U-480	90 VAC	264 VAC	750 mA	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	cULus IEC	1.5 m	59 in	Desktop (Class I)	Cord	Positive Center	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	62368-1	75 mW	International	ITE (Commercial)	36 W	IEC 320-C14	CoC Tier 2 Level VI	48 V
Phihong USA PPL36U-050	90 VAC	264 VAC	5 A	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	cULus IEC	1 m	39.4 "	Desktop (Class I)	Cord	Positive Center	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	62368-1	75 mW	International	ITE (Commercial)	25 W	IEC 320-C14	CoC Tier 2 Level VI	5 V
Phihong USA PPL36U-180	90 VAC	264 VAC	2 A	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	cULus IEC	1.5 m	59 in	Desktop (Class I)	Cord	Positive Center	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	62368-1	75 mW	International	ITE (Commercial)	36 W	IEC 320-C14	CoC Tier 2 Level VI	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
