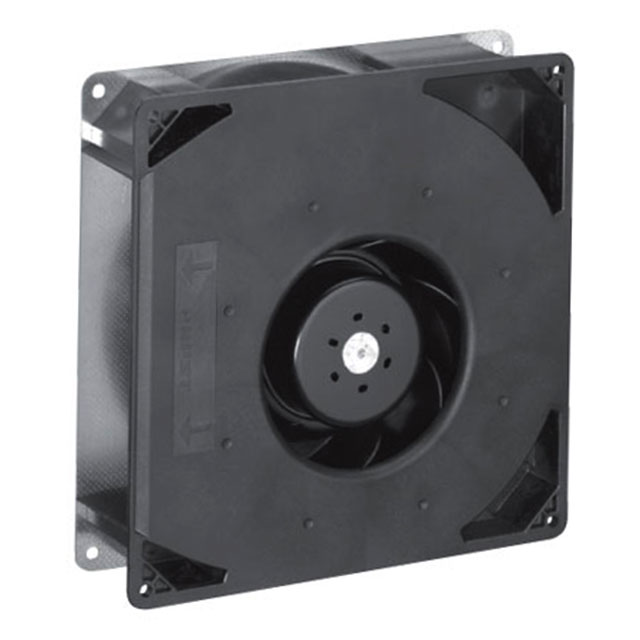

RG160-28/14NM

Active

ebm-papst Inc.

DC BLOWER CENTRIFUGAL BALL BEARING 24V 12V TO 28V 81.8CFM 56DB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog

RG160-28/14NM

Active

ebm-papst Inc.

DC BLOWER CENTRIFUGAL BALL BEARING 24V 12V TO 28V 81.8CFM 56DB

Deep-Dive with AI

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RG160-28/14NM

Air Flow	2.29 m³/min
Air Flow	81.8 CFM
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Glass Filled, Plastic
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	7 W
RPM	1900 RPM
Size / Dimension	Square
Size / Dimension [x]	220 mm
Size / Dimension [z]	220 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	1.4 kg
Weight	3.1 lbs
Width [x]	56 mm

RG160 Series

Part	Approval Agency	Voltage - Rated	Material - Blade	Bearing Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Width [x]	Air Flow	Air Flow	RPM	Lifetime @ Temp.	Material - Frame	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Weight	Weight	Ingress Protection	Features	Voltage - Rated [custom]	Noise
ebm-papst Inc. RG160-28/14NTDH	CSA UL VDE	24 VDC	Plastic Fiberglass Reinforced	Ball	2 Wire Leads	60 °C	-20 °C	-20 C	60 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	6.1 m³/min	217.8 CFM	5000 RPM	50000 Hrs	Fiberglass Reinforced Plastic Steel	101 W	16 VDC	28 VDC
ebm-papst Inc. RG160-28/14NU	UL	24 VDC		Ball	2 Wire Leads		-20 °C	-20 C	55 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	3.44 m³/min	123 CFM	2850 RPM			20 W	12 VDC	28 VDC	55 °C	3 lb	1.4 kg	IP68 - Dust Tight Waterproof
ebm-papst Inc. RG160-28/14NTD	CSA UL VDE	24 VDC	Plastic Fiberglass Reinforced	Ball	2 Wire Leads	60 °C	-20 °C	-20 C	60 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	5.08 mł/min	181.3 CFM	4200 RPM	55000 Hrs	Fiberglass Reinforced Plastic Steel	64 W	16 VDC	28 VDC
ebm-papst Inc. RG160-28/18N/12			Plastic Fiberglass Reinforced	Ball	3 Wire Leads	70 °C	-20 °C	-20 C	70 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	3.44 m³/min	123 CFM	2850 RPM	70000 Hrs	Glass Filled Plastic	20 W	28 V	60 V		3.1 lbs	1.4 kg		Speed Sensor (Tach)	48 VDC
ebm-papst Inc. RG160-28/12N/12		12 VDC	Plastic Fiberglass Reinforced	Ball	3 Wire Leads	70 °C	-20 °C	-20 C	70 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	3.44 m³/min	123 CFM	2850 RPM	70000 Hrs	Glass Filled Plastic	21 W	7.5 VDC	14 V		3.1 lbs	1.4 kg		Speed Sensor (Tach)
ebm-papst Inc. RG160-28/14NM		24 VDC	Plastic Fiberglass Reinforced	Ball	2 Wire Leads	70 °C	-20 °C	-20 C	70 °C	Blower Centrifugal	Square	220 mm	220 mm	56 mm	2.29 m³/min	81.8 CFM	1900 RPM	80000 Hrs	Glass Filled Plastic	7 W	12 VDC	28 VDC		3.1 lbs	1.4 kg				56 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 132.49

Description

General part information

RG160 Series

Fan Blower, Centrifugal 24VDC Square - 220mm L x 220mm H Ball 81.8 CFM (2.29m³/min) 2 Wire Leads
