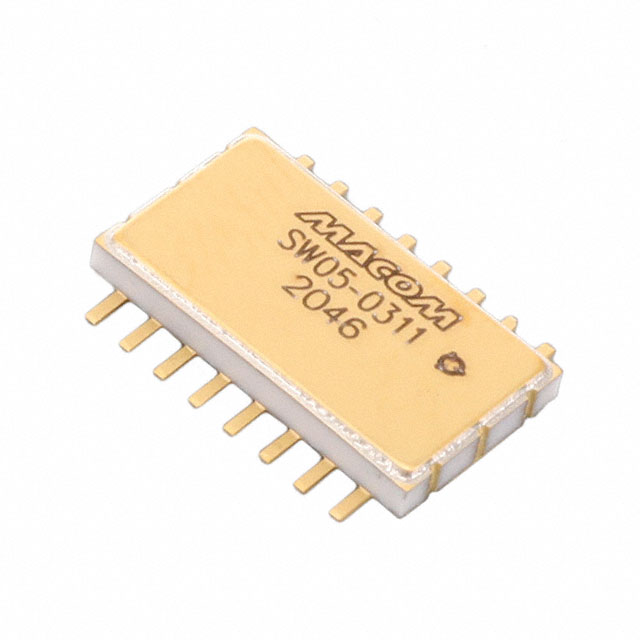

SW05-0311
ActiveMACOM Technology Solutions
IC RF SWITCH SPST 3GHZ CR-9
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SW05-0311
ActiveMACOM Technology Solutions
IC RF SWITCH SPST 3GHZ CR-9
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SW05-0311 |
|---|---|
| Circuit | SPST |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 0 Hz |
| IIP3 | 46 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 1 dB |
| Isolation | 29 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | CR-9 |
| RF Type | General Purpose |
| Supplier Device Package | CR-9 |
| Test Frequency | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 184.88 | |
| 10 | $ 177.07 | |||
| 25 | $ 173.16 | |||
Description
General part information
SW05 Series
RF Switch IC General Purpose SPST 50Ohm CR-9
