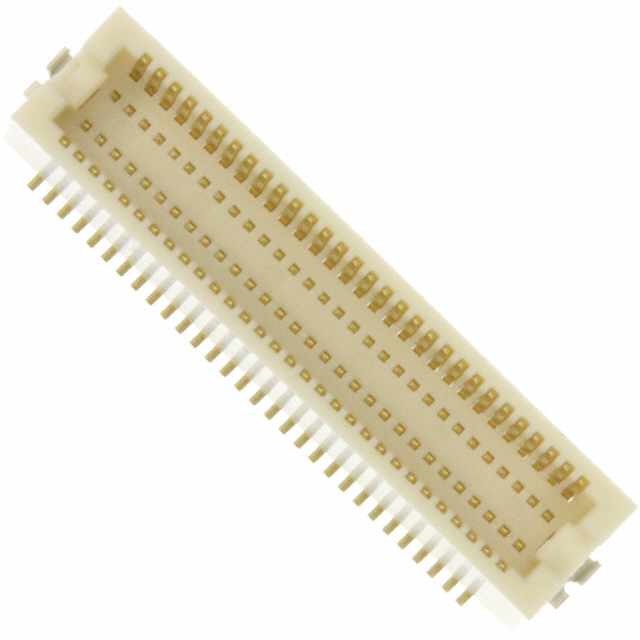

DF12(5.0)-60DP-0.5V(81)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12(5.0)-60DP-0.5V(81)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Features	Connector Type
Hirose Electric USA, Inc. DF12(5.0)-20DP-0.5V(86)	20	8 çin	0.203 çm	2	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	0.169 in	4.3 mm	Board Guide Solder Retention	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(5.0)-60DP-0.5V(81)	60			2	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	0.169 in	4.3 mm	Board Guide Solder Retention	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(5.0)-60DP-0.5V(86)	60	8 çin	0.203 çm	2	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	0.169 in	4.3 mm	Board Guide Solder Retention	Header Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
