Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.032 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

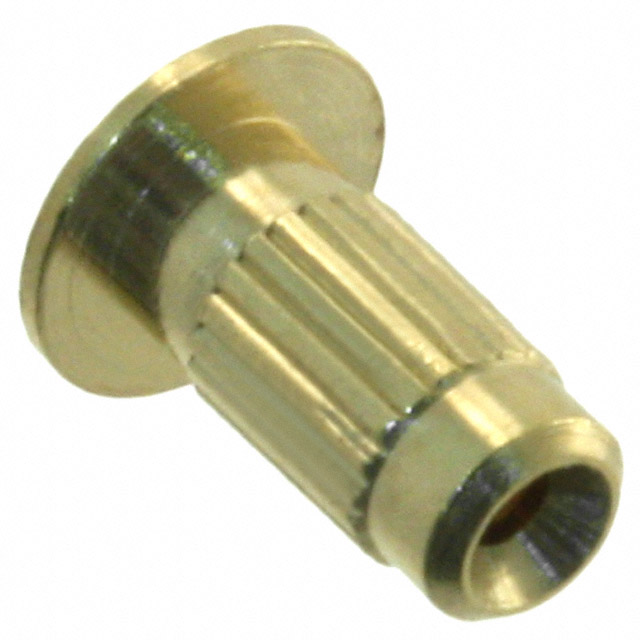

CONN PIN RCPT .022-.032 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	9019-0-19-15-06-27-10-0

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter	3.18 mm
Flange Diameter [diameter]	0.125 in
Length - Overall [x]	0.167 in
Length - Overall [x]	4.24 mm
Mounting Hole Diameter [diameter]	1.91 mm
Mounting Hole Diameter [diameter]	0.075 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	2.92 mm
Socket Depth	0.115 in
Tail Type	No Tail
Termination	Press-Fit

Part	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Flange Diameter	Flange Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 9019-0-19-01-06-01-10-0	Tin-Lead	1.91 mm	0.075 in	-55 °C	125 °C	Beryllium Copper	2.92 mm	0.115 in	0.051 in	1.3 mm	No Tail	200 Áin	5.08 Ám	0.167 in	4.24 mm	3.18 mm	0.125 in	Press-Fit
Mill-Max Manufacturing Corp. 9019-0-19-01-06-27-10-0	Gold	1.91 mm	0.075 in	-55 °C	125 °C	Beryllium Copper	2.92 mm	0.115 in	0.051 in	1.3 mm	No Tail	30 Áin	0.76 Ám	0.167 in	4.24 mm	3.18 mm	0.125 in	Press-Fit
Mill-Max Manufacturing Corp. 9019-0-19-15-06-27-10-0	Gold	1.91 mm	0.075 in	-55 °C	125 °C	Beryllium Copper	2.92 mm	0.115 in	0.051 in	1.3 mm	No Tail	30 Áin	0.76 Ám	0.167 in	4.24 mm	3.18 mm	0.125 in	Press-Fit
Mill-Max Manufacturing Corp. 9019-0-19-01-06-14-10-0	Gold	1.91 mm	0.075 in	-55 °C	125 °C	Beryllium Copper	2.92 mm	0.115 in	0.051 in	1.3 mm	No Tail	10 Áin	0.25 Ám	0.167 in	4.24 mm	3.18 mm	0.125 in	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Press-Fit
