TS2P5M20

Active

Switchcraft Inc.

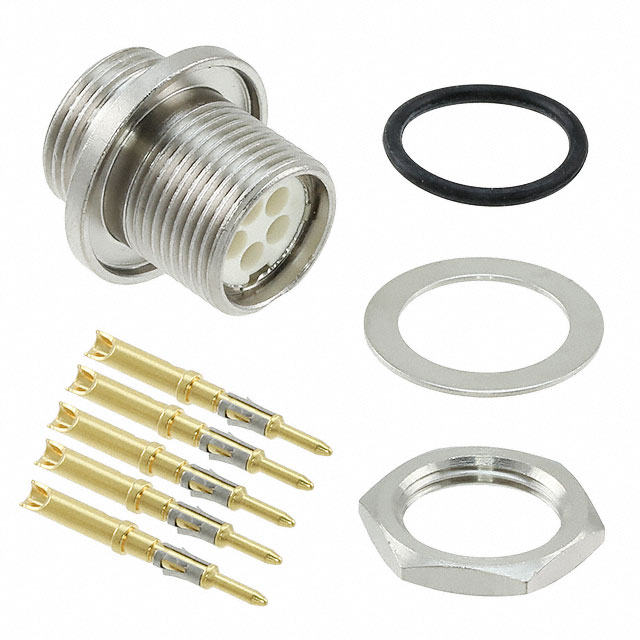

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P5M20

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Part	Shell Finish	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Orientation	Termination	Voltage Rating	Insert Material	Contact Material	Mounting Feature	Primary Material	Color	Applications	Shell Material	Connector Type	Shielding
Switchcraft Inc. TS2P5M20	Electroless Nickel	Gold	135 °C	-40 °C	IP66 IP67 IP68	Keyed	Crimp Solder Cup	125 VAC	Liquid Crystal Polymer (LCP)	Copper Alloy	Bulkhead - Rear Side Nut	Metal	Silver	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	Male Pins Receptacle	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup
