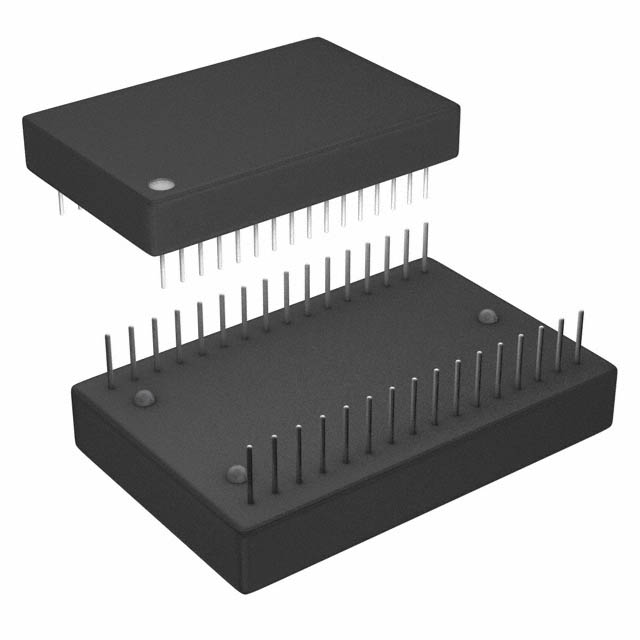

SDC1741-412
ObsoleteAnalog Devices
IC R/D CONVERTER 12BIT 32DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDC1741-412
ObsoleteAnalog Devices
IC R/D CONVERTER 12BIT 32DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDC1741-412 |
|---|---|
| Data Interface | Parallel |
| Mounting Type | Through Hole |
| Number of Channels [custom] | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0.9 in |
| Package / Case | 22.9 mm |
| Package / Case | 32-DIP |
| Resolution (Bits) | 12 b |
| Supplier Device Package | 32-DIP |
| Type | R/D Converter |
| Voltage - Supply | 15 V |
| Voltage Supply Source | Dual ± |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SDC1741 Series
R/D Converter 12 b Parallel 32-DIP
Documents
Technical documentation and resources
