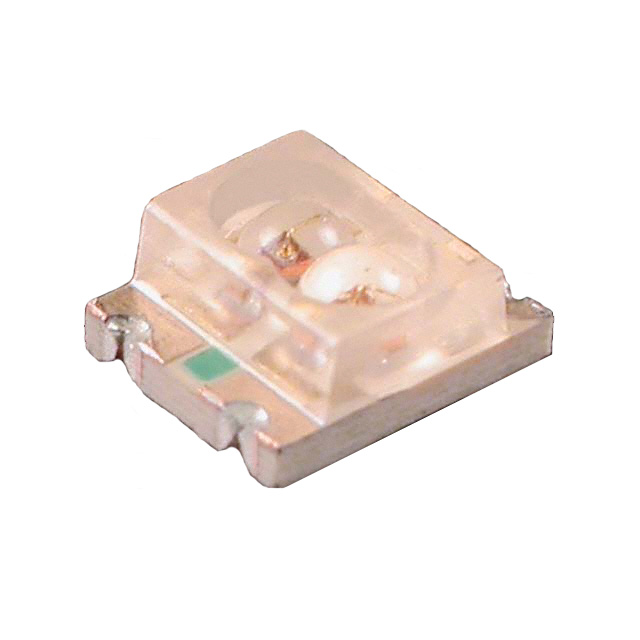

APBL3025YSGC-F01

Active

Kingbright

LED GRN/YLW CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APBL3025YSGC-F01

Active

Kingbright

LED GRN/YLW CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APBL3025YSGC-F01

Color	Green, Yellow
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	1.4 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	2.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	15 mcd
Millicandela Rating [custom]	20 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2.5 mm
Supplier Device Package	SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2.1 V
Wavelength - Dominant	568 nm, 588 nm
Wavelength - Peak	565 nm, 590 nm

APBL3025 Series

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Lens Color	Lens Style	Color	Viewing Angle	Current - Test	Package / Case	Lens Transparency	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Supplier Device Package	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Package / Case	Millicandela Rating	Wavelength - Dominant [custom]	Millicandela Rating [custom]	Current - Test	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APBL3025ESGC-F01	Surface Mount	2 V 2.2 V	15 mcd	20 mcd	Independent	3 mm	2.5 mm	565 nm 627 nm	Colorless	Rectangle with Flat Top	Green Red	100 °	20 mA 20 mA	4-SMD No Lead	Clear	1.4 mm	2 mm	2.5 mm	568 nm 617 nm	SMD
Kingbright APBL3025SURKCGK-F01	Surface Mount		300 mcd	150 mcd	Independent	3 mm	2.5 mm	574 nm 645 nm	Colorless	Rectangle with Flat Top	Green Red	50 °	20 mA 20 mA	4-SMD No Lead	Clear	1.4 mm	2 mm	2.5 mm	570 nm 630 nm	SMD	2.1 V	1.95 V
Kingbright APBL3025SYKCGKC-F01	Surface Mount	2 V 2.1 V			Independent	3 mm	2.5 mm	574 nm 590 nm	Colorless	Rectangle with Irregular Top	Green Yellow	100 °	20 mA 20 mA	1210	Clear	1.6 mm	2.5 mm	1.5 mm	570 nm 590 nm	4-SMD			3225 Metric	120 mcd 150 mcd
Kingbright APBL3025EYC-F01	Surface Mount	2 V 2.1 V	15 mcd		Independent	3 mm	2.5 mm	590 nm 627 nm	Colorless	Rectangle with Flat Top	Red Yellow	100 °		4-SMD No Lead	Clear	1.4 mm	2 mm	2.5 mm		SMD					588 nm 617 nm	15 mcd	20mA Red 20mA Yellow
Kingbright APBL3025YSGC-F01	Surface Mount	2.1 V 2.2 V		20 mcd	Independent	3 mm	2.5 mm	565 nm 590 nm	Colorless	Rectangle with Flat Top	Green Yellow	100 °	20 mA 20 mA	4-SMD No Lead	Clear	1.4 mm	2 mm	2.5 mm	568 nm 588 nm	SMD						15 mcd
Kingbright APBL3025NSGC-F01	Surface Mount			20 mcd	Independent	3 mm	2.5 mm	565 nm 607 nm	Colorless	Rectangle with Flat Top	Green Orange	100 °	20 mA 20 mA	4-SMD No Lead	Clear	1.4 mm	2 mm	2.5 mm	568 nm 610 nm	SMD	2.2 V							12 mcd	2.05 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.62
		10	$ 0.38
		100	$ 0.22
		1000	$ 0.17
	Digi-Reel®	1	$ 0.62
		10	$ 0.38
		100	$ 0.22
		1000	$ 0.17
	Tape & Reel (TR)	2000	$ 0.12

Description

General part information

APBL3025 Series

Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 4-SMD, No Lead
