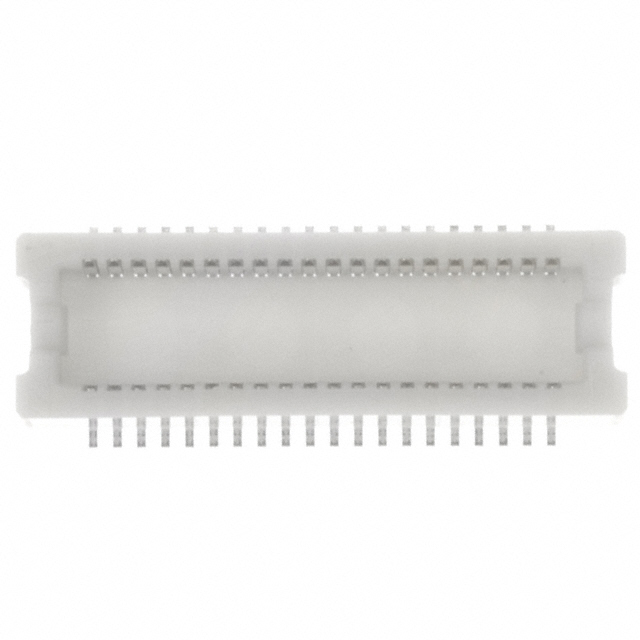

DF15A(3.2)-40DP-0.65V(56)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15A(3.2)-40DP-0.65V(56)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board [z]	3.2 mm
Height Above Board [z]	0.126 in
Mated Stacking Heights	4 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Mounting Type	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Features	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights
Hirose Electric USA, Inc. DF15A(3.2)-40DP-0.65V(56)	Surface Mount	40	2	4 Áin	0.1 Ám	3.2 mm	0.126 in	Board Guide	Gold	0.026 in	0.65 mm	Header Outer Shroud Contacts	4 mm 5 mm
Hirose Electric USA, Inc. DF15A(3.2)-50DP-0.65V(56)	Surface Mount	50	2	4 Áin	0.1 Ám	3.2 mm	0.126 in	Board Guide	Gold	0.026 in	0.65 mm	Header Outer Shroud Contacts	4 mm 5 mm
Hirose Electric USA, Inc. DF15A(3.2)-20DP-0.65V(56)	Surface Mount	20	2	4 Áin	0.1 Ám	3.2 mm	0.126 in	Board Guide	Gold	0.026 in	0.65 mm	Header Outer Shroud Contacts	4 mm 5 mm
