1028084

Obsolete

SICK, Inc.

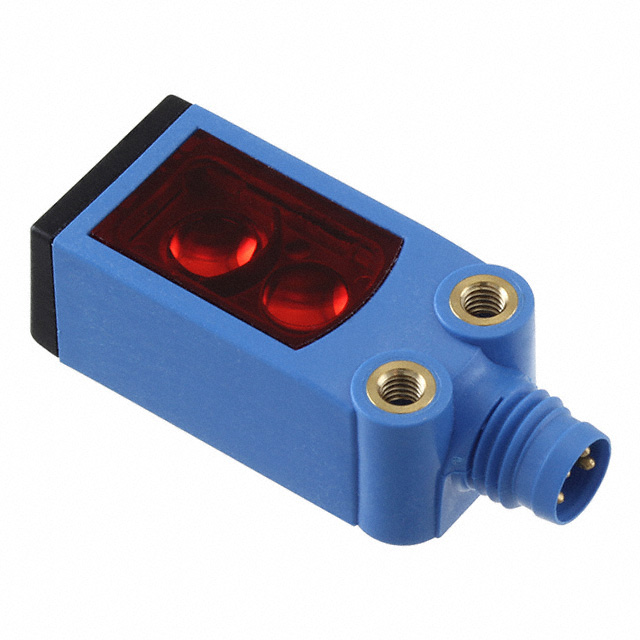

SENSOR 150MM PNP LO M8

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1028084

Obsolete

SICK, Inc.

SENSOR 150MM PNP LO M8

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1028084

Connection Method	Connector, M8, 3POS
Ingress Protection	IP66, IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	5.906 "
Sensing Distance [Max]	15 cm
Sensing Distance [Min]	1.5 cm
Sensing Distance [Min]	0.591 "
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WTB4 Series

Part	Connection Method	Ingress Protection	Output Configuration	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Response Time	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Adjustment Type	Cable Length	Cable Length	Sensing Distance	Sensing Distance
SICK, Inc. 1028125	Cable	IP67	NPN	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer	78.74 in	2 m
SICK, Inc. 1028104	Connector M8	IP66 IP67	NPN	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer
SICK, Inc. 1028123	Connector M8	IP66 IP67	PNP	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer
SICK, Inc. WTB4-3P1361	Cable	IP67	PNP	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer	78.74 in	2 m
SICK, Inc. WTB4-3P1362	Cable	IP67	PNP	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable	78.74 in	2 m
SICK, Inc. 1028101	Cable	IP67	NPN	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer	78.74 in	2 m
SICK, Inc. 1028089	Cable with Connector	IP67	NPN	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.157 "	4 mm	30 VDC	10 VDC	Adjustable	3.937 in	0.1 m
SICK, Inc. 1041717	Cable with Connector	IP66 IP67	NPN - Dark-ON/Light-ON	RED (650nm)	-40 °C	60 °C	Proximity	500 µs	15 cm	5.906 "	0.591 "	1.5 cm	30 VDC	10 VDC	Adjustable 5-Turn Potentiometer	3.937 in	0.1 m
SICK, Inc. 1029949	Cable with Connector	IP67 IP69K	NPN - Dark-ON/Light-ON	RED (650nm)	-10 °C	50 °C	Proximity	200 µs					30 VDC	10 VDC		5.906 in	150 mm	0.394 in	10 mm
SICK, Inc. 1028084	Connector M8 3POS	IP66 IP67	PNP - Dark-ON/Light-ON - Selectable	Red LED	-40 °C	60 °C		500 µs	15 cm	5.906 "	0.591 "	1.5 cm	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WTB4 Series

Optical Sensor 0.591" ~ 5.906" (15mm ~ 150mm) PNP - Dark-ON/Light-ON - Selectable
