KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5-S

Active

ams-OSRAM USA INC.

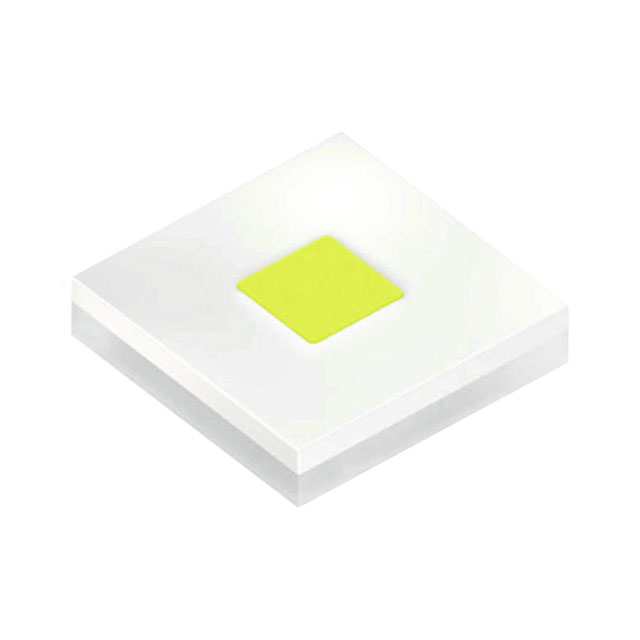

LED OSTAR WHITE SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSTAR WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5-S

Color	White
Current - Max [Max]	5 A
Flux @ 25°C, Current - Test	515 lm
Height - Seated (Max) [Max]	0.81 mm
Height - Seated (Max) [Max]	0.032 in
Lumens/Watt @ Current - Test	123 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	2.6 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Supplier Device Package	Current - Max [Max]	Mounting Type	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
ams-OSRAM USA INC. KW CSLPM2.CC-8L8M-4R9T-0-700-S	159 lm	280 lm	220 lm	Warm White	0.035 "	0.9 mm	3 °C/W	CSMD	1.8 A	Surface Mount	90	2.85 V	110 lm/W	120 °	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in
ams-OSRAM USA INC. KW CSLPM2.PC-7M7N-4C8E-0-700-S	224 lm	400 lm	312 lm	Cool White	0.035 "	0.88 mm	3 °C/W	CSMD	1.8 A	Surface Mount	70	2.85 V	156 lm/W	120 °	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	6500 K
ams-OSRAM USA INC. KW CSLPM2.CC-8L8M-4L8N-0-700-S	159 lm	280 lm	220 lm	Neutral White	0.035 "	0.9 mm	3 °C/W	CSMD	1.8 A	Surface Mount	90	2.85 V	110 lm/W	120 °	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	4000 K
ams-OSRAM USA INC. KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5-S			515 lm	White				SMD	5 A	Surface Mount		3 V	123 lm/W	120 °	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in		2.6 °C/W	0.81 mm	0.032 in
