A79029-001

Active

Omnetics

36 POSITION DUAL ROW FEMALE NANO

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW FEMALE NANO

Technical Specifications

Parameters and characteristics for this part

Specification	A79029-001

Cable Termination	Crimp
Color	Multiple, Individual
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	36
Number of Rows	2
Pitch - Connector	0.025 in
Pitch - Connector	0.64 mm
Shielding	Unshielded

Part	Pitch - Connector	Pitch - Connector	Contact Finish	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Rows	Connector Type	Shielding	Number of Positions
Omnetics A79029-001	0.025 in	0.64 mm	Gold	Individual Multiple	Crimp	50 µin	1.27 µm	457.2 mm	1.5 ft	2	Socket to Individual Wire Leads	Unshielded	36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

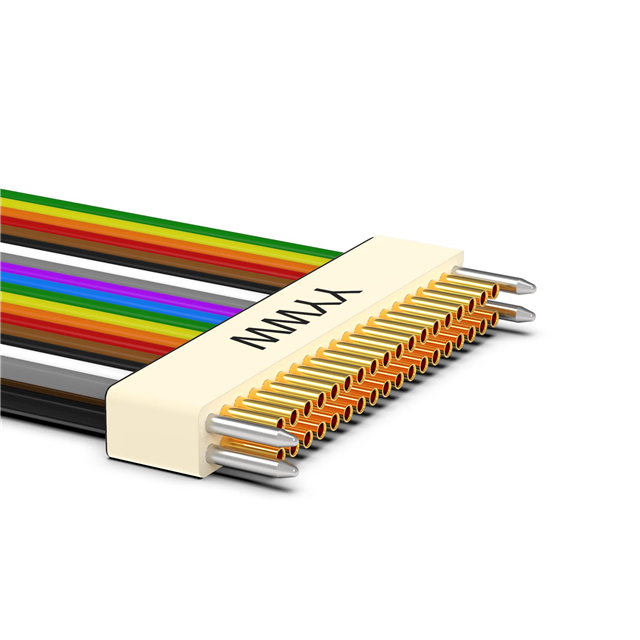

36 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.50' (457.20mm)
