0034.1508.PT

Obsolete

SCHURTER Inc.

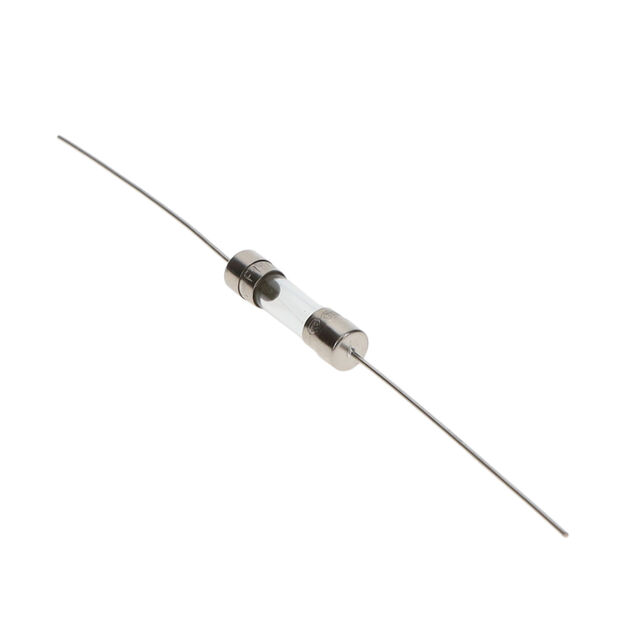

FUSE GLASS 160MA 250VAC 5X20MM

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

FUSE GLASS 160MA 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.1508.PT

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	160 mA
Melting I²t	0.0113 I²t
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

Part	Package / Case [x]	Package / Case [y]	Melting I²t	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Response Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 0034.1508.PT	5 mm	20 mm	0.0113 I²t	250 V	0.886 "	22.5 mm	5.4 mm	0.213 in	160 mA	Fast Blow	Through Hole	-55 °C	125 °C	35 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

160 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
