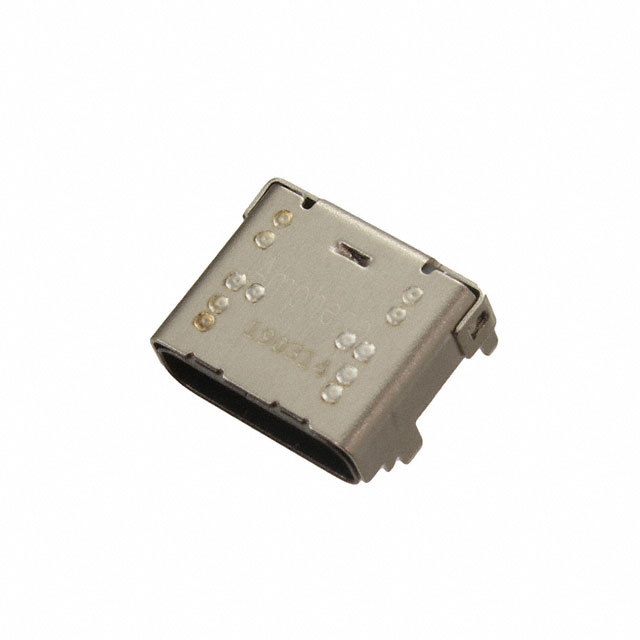

12401902E212A

Obsolete

Amphenol ICC (Commercial Products)

USB TYPE C, RECEPTACLE, TOP MOUN

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

USB TYPE C, RECEPTACLE, TOP MOUN

Technical Specifications

Parameters and characteristics for this part

Specification	12401902E212A

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Gender	Receptacle
Ingress Protection	IPX2 - Waterproof
Insulation Color	Black
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

Part	Mating Cycles	Insulation Color	Connector Type	Specifications	Gender	Ingress Protection	Contact Finish	Number of Contacts	Mounting Type	Current Rating (Amps)	Shell/Shielding Material	Termination	Mounting Feature	Number of Ports
Amphenol ICC (Commercial Products) 12401902E212A	10000	Black	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Receptacle	IPX2 - Waterproof	Gold	24	Surface Mount Right Angle Through Hole	5 A	Stainless Steel	Solder	Horizontal	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
