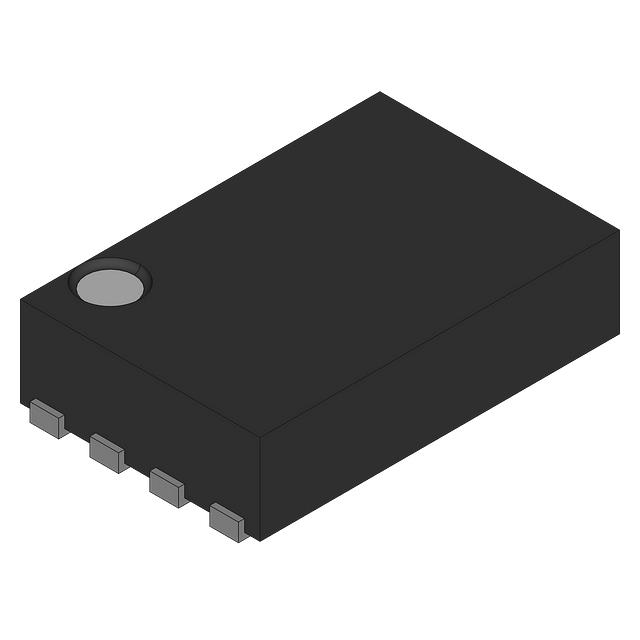

TVS8814MUTAG

Obsolete

ON Semiconductor

TVS DIODE 3VWM 15VC 8-UDFN

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TVS DIODE 3VWM 15VC 8-UDFN

Technical Specifications

Parameters and characteristics for this part

Specification	TVS8814MUTAG

Applications	Ethernet
Capacitance @ Frequency	5 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	8-UDFN Exposed Pad
Power Line Protection	False
Supplier Device Package	8-UDFN (2x2.2)
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	3.2 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ) [Max]	3 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Voltage - Reverse Standoff (Typ) [Max]	Type	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Power Line Protection	Unidirectional Channels [custom]
ON Semiconductor TVS8814MUTAG	15 V	8-UDFN Exposed Pad	3 V	Zener	3.2 V	8-UDFN (2x2.2)	5 pF	125 ¯C	-55 °C	Surface Mount	Ethernet		4
ON Semiconductor TVS8818MUTAG	15 V	10-UDFN Exposed Pad	3 V	Zener	3.2 V	10-UDFN (3.5x2)	5 pF	125 ¯C	-55 °C	Surface Mount	Ethernet		8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	904	$ 0.33

General part information

15V Clamp 35A (8/20µs) Ipp Tvs Diode Surface Mount 8-UDFN (2x2.2)
