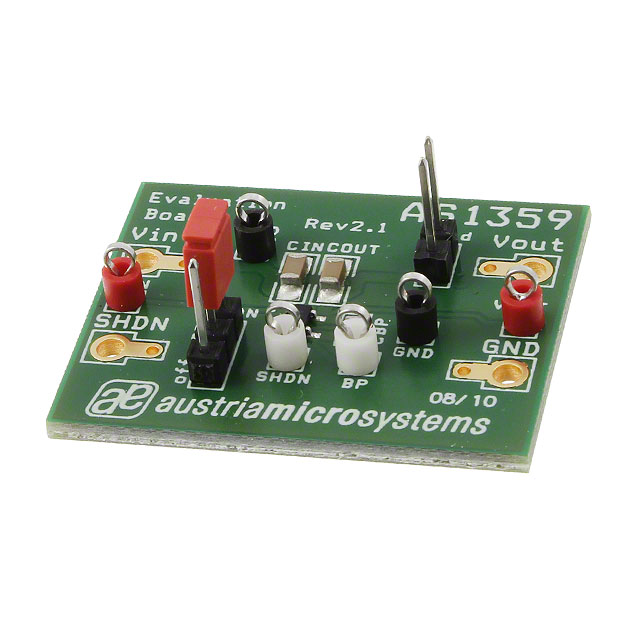

AS1359-TT-18_EK_ST

Obsolete

ams-OSRAM USA INC.

EVAL BOARD FOR AS1359

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EVAL BOARD FOR AS1359

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	PSRR [Max]	PSRR [Min]	Protection Features	Package / Case	Number of Regulators	Mounting Type	Voltage - Output (Min/Fixed)	Control Features	Output Type	Output Configuration	Voltage Dropout (Max) [Max]	Current - Output	Contents	Utilized IC / Part	Channels per IC	Regulator Type	Voltage - Output
ams-OSRAM USA INC. AS1359-BTTT-31	5.5 V	85 °C	-40 °C	90 çA	92 dB	62 dB	Over Temperature	SOT-23-5 Thin TSOT-23-5	1	Surface Mount	3.1 V	Enable	1.81 mOhm	Positive	0.2 V	300 mA
ams-OSRAM USA INC. AS1359-TT-18_EK_ST																300 mA	Board(s)	AS1359	1 - Single	Positive Fixed	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AS1359 - 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board

Technical documentation and resources
