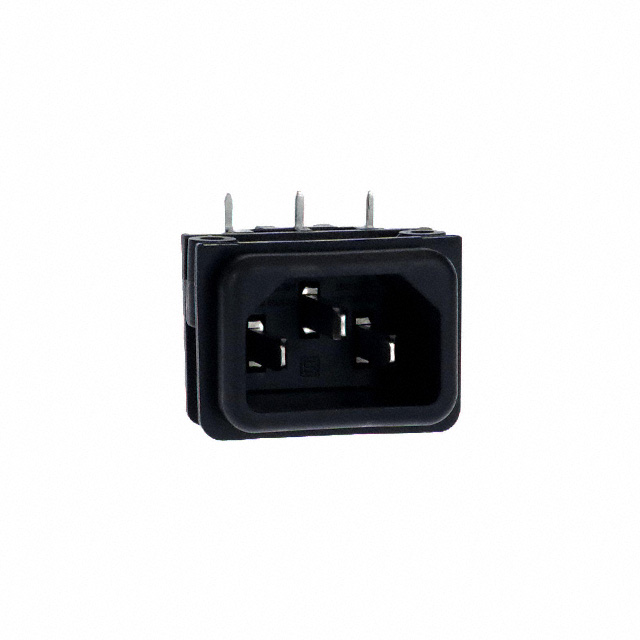

GSF1.0001.31

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.0001.31

Accomodates a Fuse	False
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Mounting Hardware
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Panel Thickness	Panel Thickness	Features	Termination	Ingress Protection	Voltage Rating - Appliance Inlet	Material Flammability Rating	Accomodates a Fuse	Current Rating - Appliance Inlet	Approval Agency	Connector Style	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. GSF1.0001.01	Male Blades Receptacle	30.3 mm	22.3 mm	Unfiltered - Commercial	0.236 in	6 mm	Mounting Hardware	Solder	IP40	250 VAC	UL94 V-0		10 A	CCC CSA ENEC UL	IEC 320-C14	Panel Mount Flange Through Hole Right Angle
SCHURTER Inc. GSF1.0001.31	Male Blades Receptacle			Unfiltered - Commercial			Mounting Hardware	Solder	IP40	250 VAC	UL94 V-0		10 A	CCC CSA ENEC UL	IEC 320-C14	Panel Mount Flange Through Hole Right Angle	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
