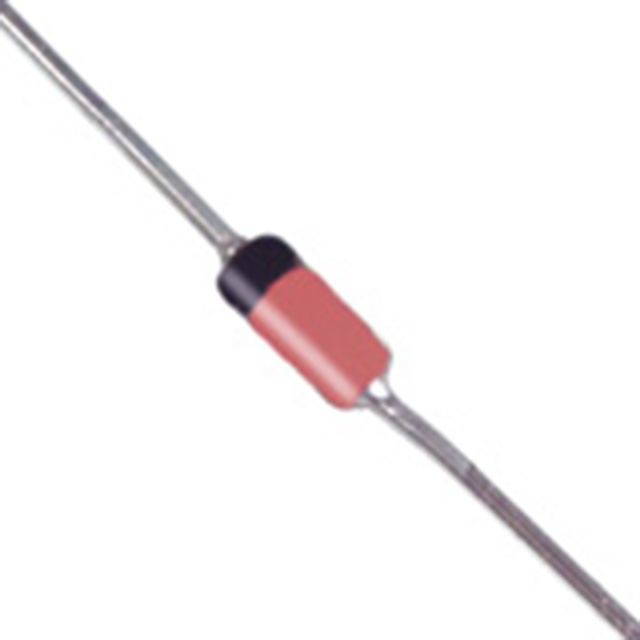

1N5225B-T
ObsoleteDiodes Inc
DIODE ZENER 3V 500MW DO35
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5225B-T
ObsoleteDiodes Inc
DIODE ZENER 3V 500MW DO35
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5225B-T |
|---|---|
| Current - Reverse Leakage @ Vr | 50 ÁA |
| Impedance (Max) (Zzt) [Max] | 29 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-35 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1N5225 Series
Zener Diode 3 V 500 mW ±5% Through Hole DO-35
