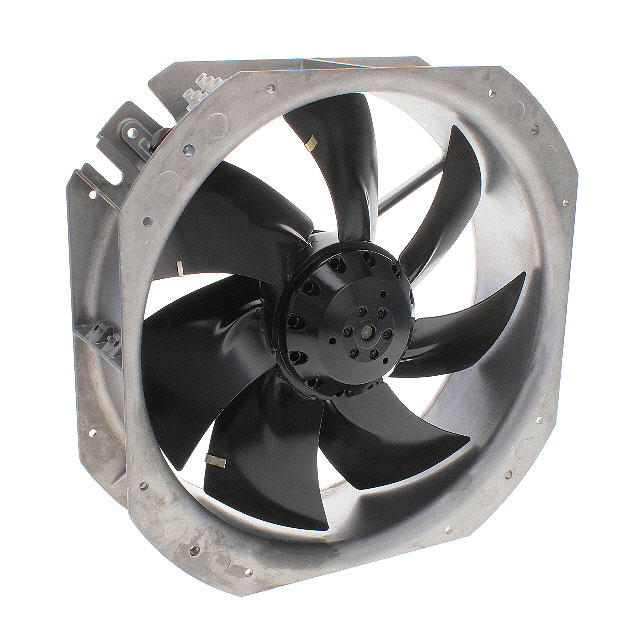

W2D250-HH14-09

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Width [y]	Approval Agency	Material - Blade	Termination	Bearing Type	Fan Type	Voltage - Rated	RPM	Current Rating (Amps)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [diameter]	Size / Dimension	Ingress Protection	Voltage - Rated [Max] [custom]	Voltage - Rated [Min] [custom]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Static Pressure	Static Pressure	Material - Frame	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]
ebm-papst Inc. W2D250-CH12-14	85 mm	CE	Steel	9 Wire Leads	Ball	Motorized Impellers	440 VAC	1850 RPM	0.2 A	75 W	45 °C	-40 °C	45 °C	-40 °C	Thermal Overload Protector (TOP)	320 mm	Round	IP44
ebm-papst Inc. W2D250-CA06-52	85 mm	CE CSA UL	Steel	9 Wire Leads with Splice Terminals	Ball	Tubeaxial 3 Phase		2900 RPM		150 W	65 °C	-25 °C	65 °C	-25 °C	Dual Voltage Thermal Overload Protector (TOP)	320 mm	Round	IP44	460 VAC	265 VAC	0.38 A	0.22 A	0.502 in H2O	125 Pa	Steel
ebm-papst Inc. W2D250-CA02-01	85 mm	CE EAC	Steel	7 Wire Leads with Splice Terminals	Ball	Tubeaxial 3 Phase	230 VAC 400 VAC	2950 RPM		160 W	40 °C	-25 °C	40 °C	-25 °C	Dual Voltage	320 mm	Round	IP44			0.45 A	0.26 A	1.204 in H2O	299.9 Pa	Steel	618.5 CFM	17.32 m³/min
ebm-papst Inc. W2D250-HH14-09	90.2 mm	CCC CE CSA EAC UL	Steel	Terminal Block	Ball	Tubeaxial 3 Phase	400 VAC 460 VAC	2800 RPM		145 W 175 W	60 °C	-25 °C			Dual Voltage			IP44			0.24 A	0.23 A			Aluminum			320 mm	320 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial, 3 Phase 400/460VAC Square - 320mm L x 320mm H Ball Terminal Block
