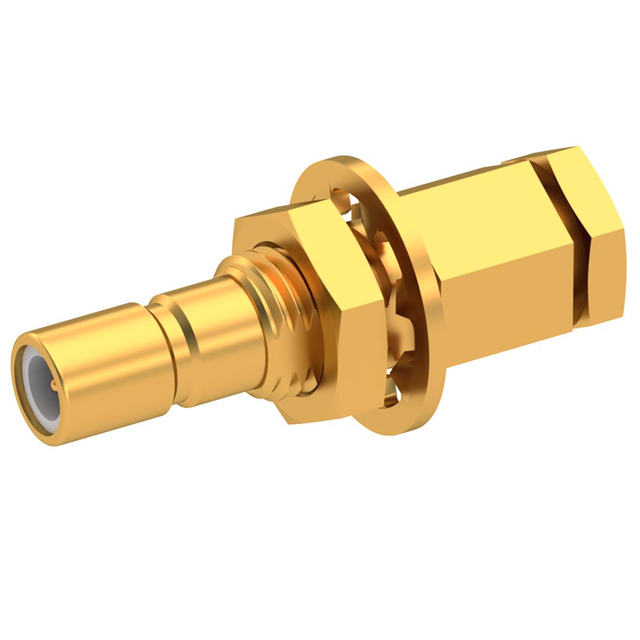

7203-1541-021

Active

Radiall USA, Inc.

SSMB M STR BHD SD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB M STR BHD SD

Technical Specifications

Parameters and characteristics for this part

Specification	7203-1541-021

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Housing Color	Fastening Type	Number of Ports	Includes	Frequency - Max [Max]	Contact Termination	Mating Cycles	Shield Termination	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Type	Voltage Rating	Body Finish	Mounting Feature	Body Material	Dielectric Material	Center Contact Plating
Radiall USA, Inc. 7203-1541-021	Gold	Snap-On	1	1 Connector 1 Lockwasher 1 Nut	12.4 GHz	Solder	500	Solder	Beryllium Copper	SSMB	-65 ░C	165 °C	50 Ohms	Jack Male Pin	250 VDC	Gold	Bulkhead - Front Side Nut	Brass	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
