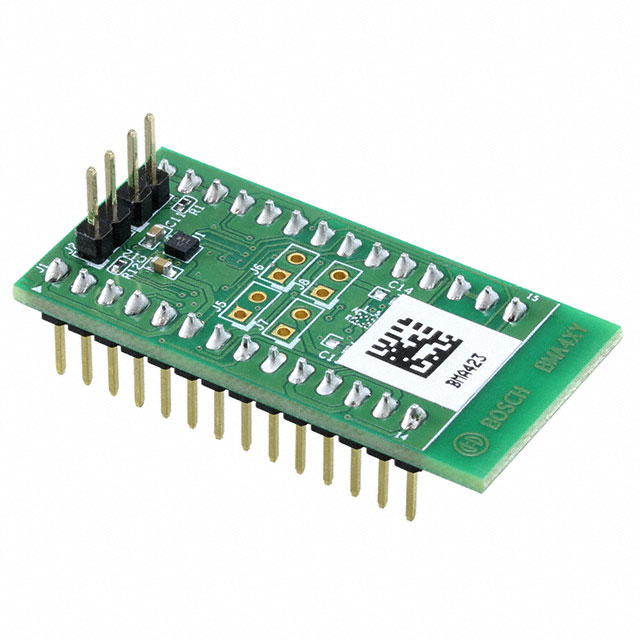

SHUTTLE BOARD BMA423

Obsolete

Bosch Sensortec

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA423

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Type	Utilized IC / Part	Function	Features	Package / Case	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Min]	Bandwidth [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Axis [z]	Axis [y]	Axis [x]	Output Type
Bosch Sensortec SHUTTLE BOARD BMA423	Board(s)	Sensor	BMA423	Accelerometer
Bosch Sensortec BMA423		Digital			Adjustable Bandwidth Selectable Low Pass Filter	12-WFLGA	4 g 8 g 16 g	-2 g	2 g	85 °C	-40 °C	8 Hz	1.6 kHz	Surface Mount	3.6 V	1.62 V	12-LGA (2x2)	Z	Y	X	I2C SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA423 Accelerometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources
