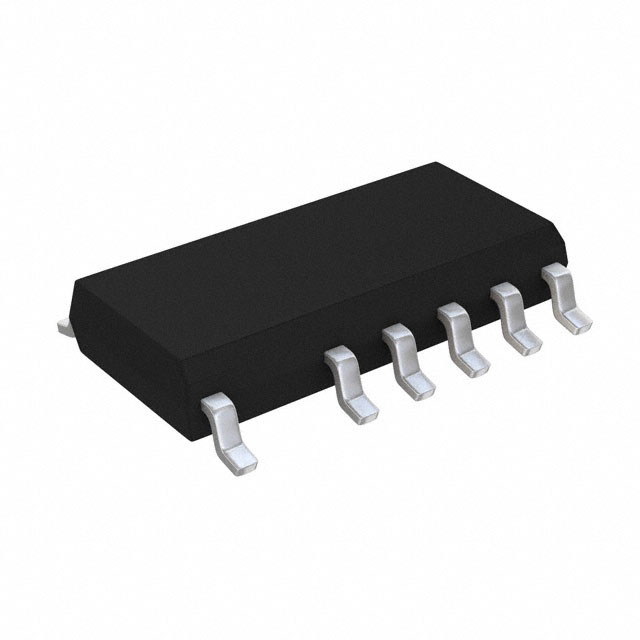

SSL21084AT/1,118

Unknown

Freescale Semiconductor - NXP

IC LED DRIVER OFFL PWM 1A 12SO

Search across all available documentation for this part.

Unknown

Freescale Semiconductor - NXP

IC LED DRIVER OFFL PWM 1A 12SO

Technical Specifications

Parameters and characteristics for this part

Specification	SSL21084AT/1,118

Current - Output / Channel [custom]	1 A
Dimming	PWM
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SOIC
Package / Case [custom]	12
Package / Case [x]	3.9 mm, 0.154 in
Supplier Device Package	12-SO
Topology	Step-Down (Buck)
Type	AC DC Offline Switcher
Voltage - Output	600 V
Voltage - Supply (Max) [Max]	14 V
Voltage - Supply (Min) [Min]	8 V

Part	Dimming	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Number of Outputs	Supplier Device Package	Voltage - Supply (Min) [Min]	Package / Case [x]	Package / Case [custom]	Package / Case	Mounting Type	Internal Switch(s)	Voltage - Supply (Max) [Max]	Topology	Current - Output / Channel [custom]
Freescale Semiconductor - NXP SSL21084AT/1,118	PWM	AC DC Offline Switcher	-40 °C	125 °C	600 V	1	12-SO	8 V	0.154 in 3.9 mm	12	14-SOIC	Surface Mount		14 V	Step-Down (Buck)	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 1 Output AC DC Offline Switcher Step-Down (Buck) PWM Dimming 1A (Switch) 12-SO
